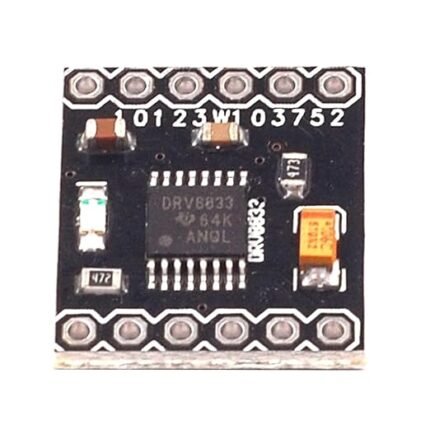

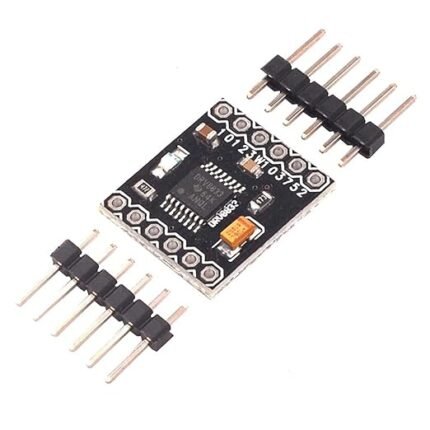

DRV8833 2 Channel DC Motor Driver
Features:
- Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
- Operating voltage: 2.7V to 10.8V
- Output current: 1.2A continuous (2A peak) per motor
- Motor outputs can be paralleled to deliver 2.4A continuous (4A peak) to a single motor
- Inputs are 3V- and 5V-compatible
- Under-voltage lockout and protection against over-current and over-temperature
- Reverse-voltage protection circuit
- Current limiting can be enabled by adding sense resistors (not included)

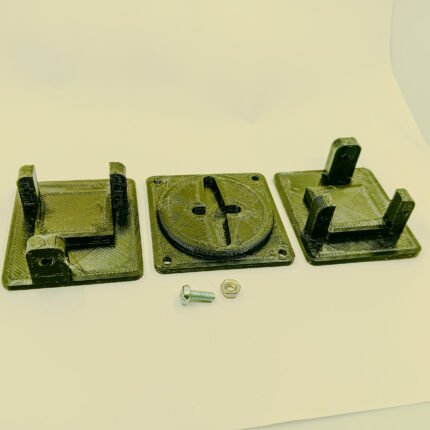

Servo Motor Pan-Tilt Setup (*Servo Motor Not Include) – 179
Features:
- PV Nylon Head Two Axial plastic
- Two axial platform
- Anti-vibration
- lightweight
- Good design and shape
- Pan and tilt using simple PPM interface using RC servos with position control.
- 180 Degree of freedom on both axis.
MAX6675 Module with K Type Thermocouple Sensor
MAX7219 8×8 LED Dot Matrix Display Module
he individual module features 88 LEDs, each controlled very precisely bythe MAX7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc. Perfect for use in various electronics projects in India, MAX7219 8x8 LED Dot Matrix Display Module ensures reliability and performance. Ideal for various electronics projects, MAX7219 8x8 LED Dot Matrix Display Module offers quality and performance.
Ethernet Shield W5100 For Arduino Uno Mega 1280 2560 Micro Sd Card
This Arduino-Compatible Ethernet Shield which is based on the Wiznet W5100 Ethernet Chip gives you an easy way to get your Arduino Board Online.It fits all version of Arduino Main Boards. Including Arduino UNO, Arduino MEGA 2560, Arduino Mega 1280. Perfect for use in various electronics projects in India, Ethernet Shield W5100 For Arduino Uno Mega 1280 2560 Micro Sd Card ensures reliability and performance. Ideal for various electronics projects, Ethernet Shield W5100 For Arduino Uno Mega 1280 2560 Micro Sd Card offers quality and performance.
MEGA 2560 R3 (ATmega2560-16AU CH340G) compactable with Arduino AVR
The Arduino Mega 2560 R3 is an open source precise microcontroller board Successor to the Arduino Mega based on the ATmega2560 SMD chip.The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins. Perfect for use in various electronics projects in India, MEGA 2560 R3 (ATmega2560-16AU CH340G) compactable with Arduino AVR ensures reliability and performance. Ideal for various electronics projects, MEGA 2560 R3 (ATmega2560-16AU CH340G) compactable with Arduino AVR offers quality and performance.
8 Channel 5V Relay Board Expansion Module Optocoupler compatible UNO Raspberry
Specification
- This relay module is 5 Volts active low.
- It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
- It is also able to control various appliances and other equipments with large current.
- Relay output maximum contact is AC250V 10A and DC30V 10A.
- Standard interface can be directly connected with microcontrollers.
- Red working status indicator lights are conducive to the safe use.
- Widely used for all MCU control, industrial sector, PLC control, smart home control.
- Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.
- VCC, GND : Input power.
- JD - VCC : Relay power input port,relay can power alone.
- Working voltage : 5V
- Module weight : about 112g
- package weight : about 150g
- module size : about 1.7cm X 5.5cm X 13.7cm(height * width * long)
4 Channel Logic Level Converter

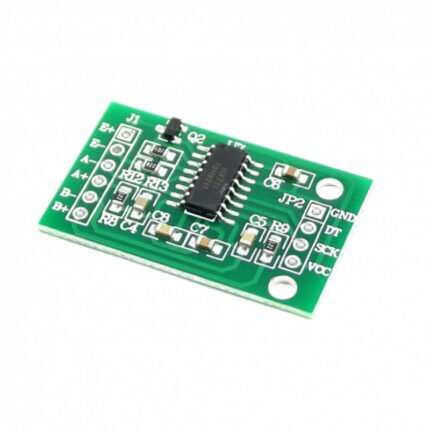

HX711 Load Cell Amplifier Module
CH340G USB To TTL(Serial) Converter
nan Perfect for use in various electronics projects in India, CH340G USB To TTL(Serial) Converter For Arduino Nano Raspberry Pi ensures reliability and performance. Ideal for various electronics projects, CH340G USB To TTL(Serial) Converter For Arduino Nano Raspberry Pi offers quality and performance.
Ardui Mega 2560 PRO MINI Development Board
Specification
- Microcontroller : ATmega 2560
- USB-TTL converter : CH340g
- Power Out : 5 Volt - 800mA
- Power IN. : 5 Volt
- Power IN. VIN/DC Jack : 5 Volt
- Power Consumption :5 Volt, 220mA
- Logic Level : 5 Volt
- USB : Micro USB
- Clock Frequency : 16MHz
- Operating Supply Voltage : 5 Volt
- Digital I/O: 54
- Analog I/O : 16
- Memory Size : 256kb
- Data RAM Type/Size : 8Kb
- Data ROM Type/Size : 4Kb
- Interface Type : ISP
- Operating temperature : 40/+85
ATTINY85 USB Development Board
Specification
-
- Support for the IDE 1.0+ (OSX / Win / Linux)
- Power via USB or External Source - 5V or 7 -35V (automatic selection)
-
- On-board 500ma 5V Regulator
-
- Built-in USB(and serial debugging)
-
- 6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)
-
- 8k Flash Memory (about 6K after bootloader)
-
- I2C and SPI(vis USI)
-
- PWM on 3 pins (more possible with Software PWM)
-
- ADC on 4 pins
-
- Power LED and Test/ Status LED (on Pin0)
-
- Weight : 4g
