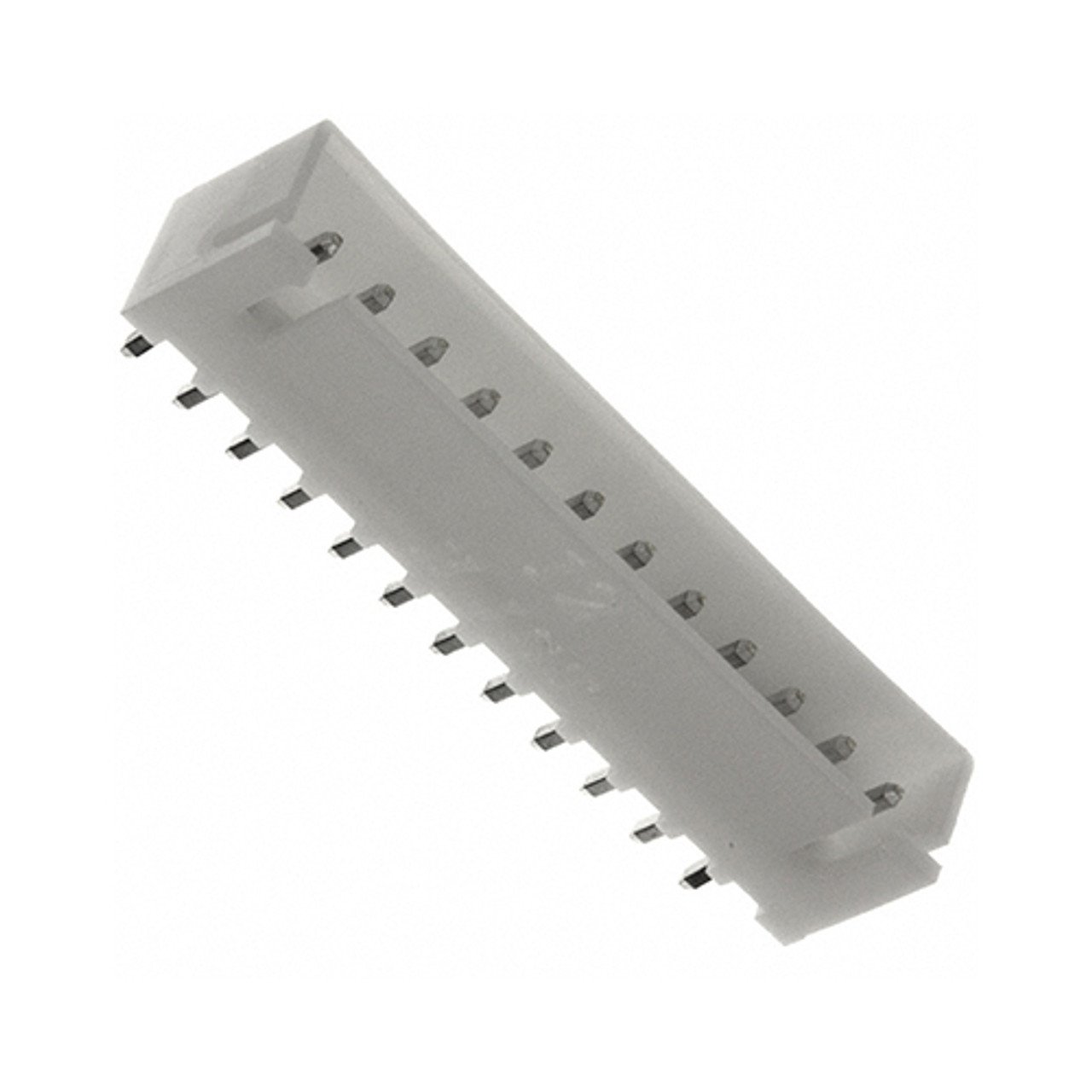

XH 2.5mm 12-Pin Wafer Male Connector – Straight DIP, Tin-Plated
Original price was: ₹5.00.₹3.00Current price is: ₹3.00.
The XH 2.5mm 12-Pin Male Connector offers secure connections with detent lock, tin plating, and durable Polyamide material. Ideal for versatile electronic applications.
40 in stock
The XH 2.5mm 12-Pin Wafer Male Connector is a reliable and high-performance solution for PCB-mounted electronic applications. With a 2.5mm pitch and a straight DIP design, this connector ensures secure and stable connections, thanks to its detent lock mechanism.
Constructed from durable Polyamide material in a natural finish, it provides excellent mechanical strength while maintaining lightweight characteristics. The tin-plated contacts offer superior conductivity and robust resistance against corrosion, ensuring long-term reliability.
Technical Specifications:
- Pin Count: 12 pins
- Pitch: 2.5mm
- Contact Plating: Tin for enhanced conductivity
- Voltage Rating: 250V
- Current Rating: 3A
- Insulation Resistance: 1000MΩ
- Operating Temperature Range: -25°C to +85°C
- Termination: Soldering for strong and permanent connections
- Material: Polyamide (Natural color)
Designed for easy mounting on PCBs, this connector is perfect for electronic circuits requiring stable and efficient wire-to-board connections. Its wide operating temperature range makes it suitable for varied environments, from consumer electronics to industrial systems.
Choose the XH 2.5mm 12-Pin Wafer Male Connector for a combination of secure connectivity, durability, and ease of integration in your projects.
