Specification

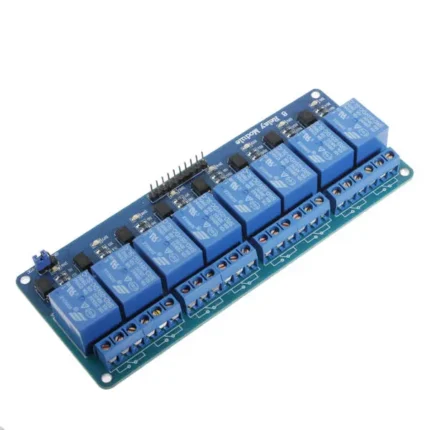

• This relay module is 5 Volts active low.

• It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.

• It is also able to control various appliances and other equipments with large current.

• Relay output maximum contact is AC250V 10A and DC30V 10A.

• Standard interface can be directly connected with microcontrollers.

• Red working status indicator lights are conducive to the safe use.

• Widely used for all MCU control, industrial sector, PLC control, smart home control.

• Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.

• VCC, GND : Input power.

• JD - VCC : Relay power input port,relay can power alone.

• Working voltage : 5V

• Module weight : about 112g

• package weight : about 150g

• module size : about 1.7cm X 5.5cm X 13.7cm(height * width * long)

• 1GHz, single-core CPU
• 512MB RAM
• Mini HDMI and USB On-The-Go ports
• Micro USB power
• 11 b/g/n wireless LAN
• Bluetooth 4.1
• Bluetooth Low Energy (BLE)
• HAT-compatible 40-pin header
• Composite video and reset headers
• CSI camera connector
