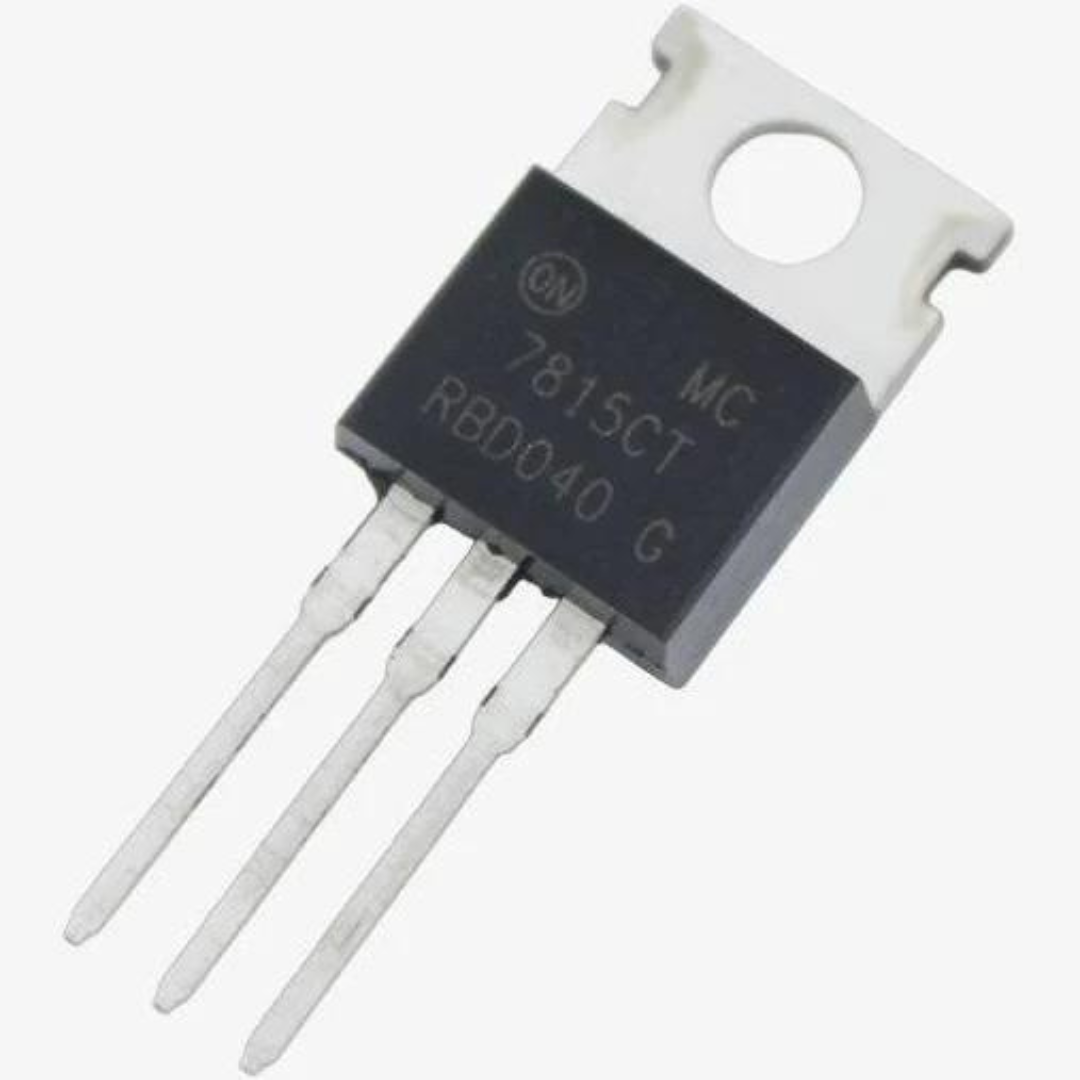

LM7815 Step Down 19V-35V to 15V Power Supply Module DIY Kit
Original price was: ₹20.00.₹13.95Current price is: ₹13.95.
Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.?LM7815?is the voltage ragulator with the output +15V DC and 1Amp current.
9 in stock
- Output Current up to 1A
- Output Voltages of 15V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating Area Protection
- Thermal Resistance Junction-Cases (TO-220) RJC?: 50C/W
- Thermal Resistance Junction-Air (TO-220) RJA: 650C/W
- Operating Temperature Range TOPR? :0-1500C
- Storage Temperature Range TSTG: -65-1500C
