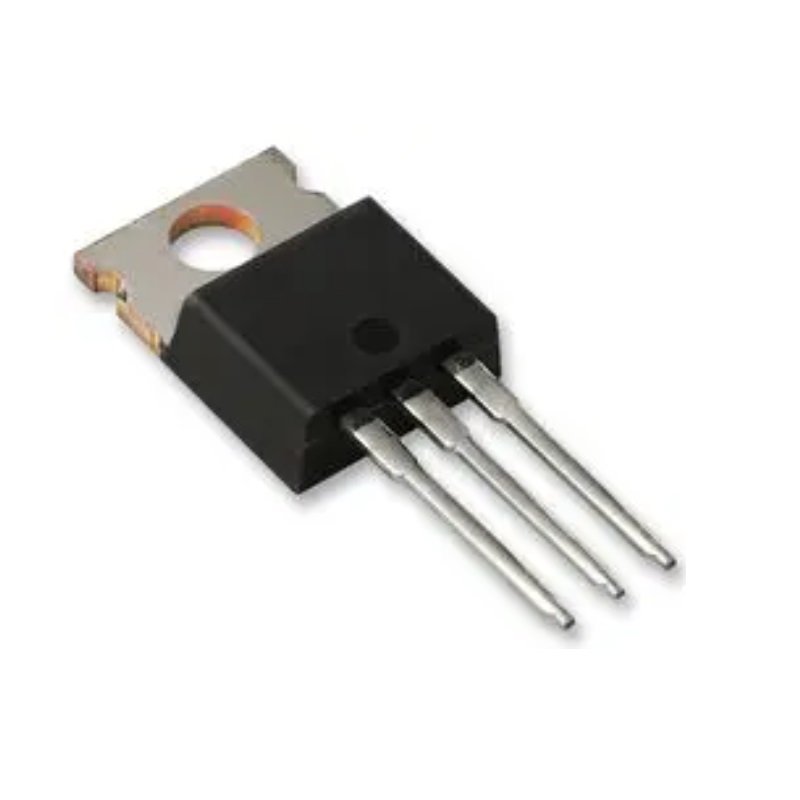

			LM7812 IC-12V Positive Voltage Regulator IC
Rated 4.00 out of 5 based on 1 customer rating
								(1 customer review)
						₹18.00 Original price was: ₹18.00.₹15.00Current price is: ₹15.00. + GST
LM7812? of three terminal positive voltage regulator in the TO-220 package and with fixed positive 12 volt output. Making LM7812 useful in a wide range of applications. It employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 Ampere output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
12 in stock




				SKU:

				B-1


			Categories: Electronic, Power Supply






								Description


				- Mounting Style : Through Hole
- Number of Outputs : 1 Output
- Polarity : Positive
- Output Voltage : 12 Volts
- Output Current : 1 Aampere
- Output Type : Fixed
- Input Voltage MAX : 24 V
- Input Voltage MIN : 12.2 V
- Minimum Operating Temperature : – 40??C
- Maximum Operating Temperature : + 125?C
- Load Regulation : 180 mV
- Line Regulation : 180 mV
- Series : LM7809
- PSRR / Ripple Rejection : 71 dB
- Output Current up to 1A
- Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating Area Protection

								Reviews (1)


				1 review for LM7812 IC-12V Positive Voltage Regulator IC
		Add a review Cancel reply
				You must be logged in to post a review.
