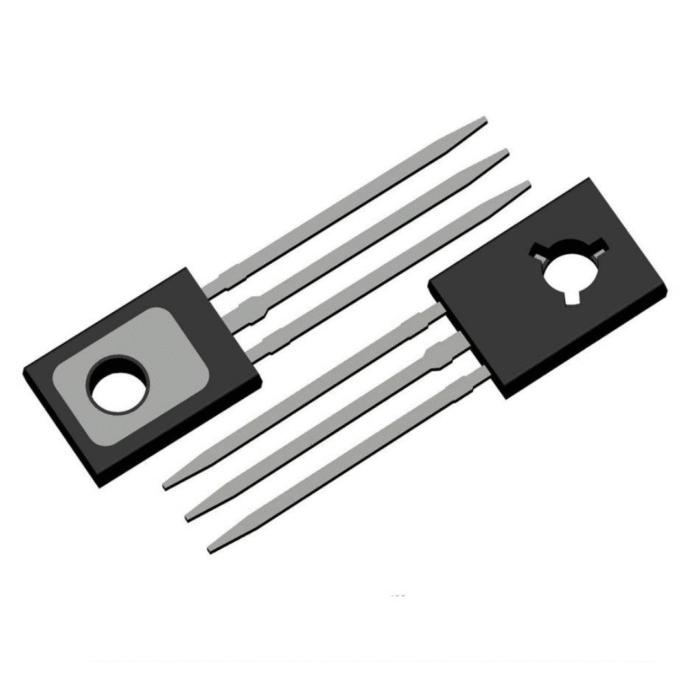

BD140 – 80V ,1.5A NPN power Transistor voltage regulator
Original price was: ₹10.00.₹6.56Current price is: ₹6.56. + GST
BD140 is a three layer NPN or PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
89 in stock
Description
| Transistor Polarity | PNP |
| Collector?Emitter Voltage (VCEO) | 80V |
| Collector?Base Voltage (VCBO) | 80V |
| Continuous Collector Current (Ic) | 1.5A |
| Continuous Base Current (Ib) | 0.5A |
| DC Current Gain (hFE) | 40-250 |
| Operating Temperature Range | -65 – 150?C |
| Power Dissipation (Pd) | 12.5W |
| Thermal Resistance (?JA) | 100?C/W |
| Thermal Resistance (?JC) | 10?C/W |
