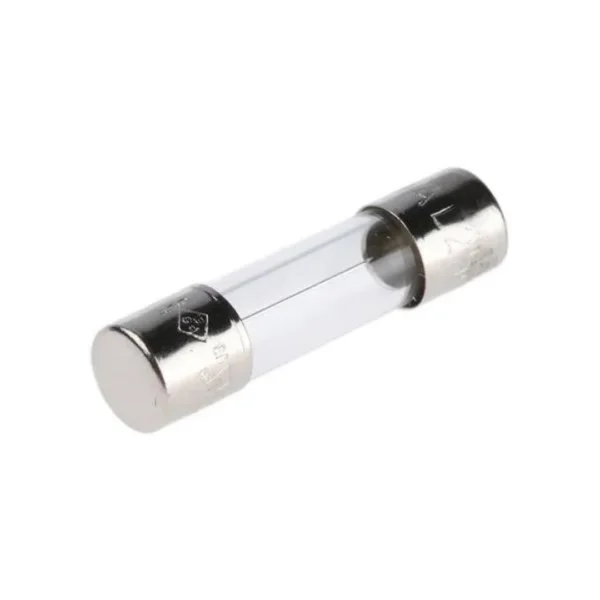

5A FUSES 5A FUSE GLASS 5 X 20 mm
₹15.00 + GST
Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
100 in stock
- Rated 4.62 out of 5
74hc595 74595 Sn74hc595n 8-bit Shift Register Ic, Black
₹16.80+ GSTAdd to cart
The 74HC595 consists of an 8?bit shift register and an 8?bit D?typelatch with three?state parallel outputs. The shift register accepts serialdata and provides a serial output. The shift register also providesparallel data to the 8?bit latch. The shift register and latch haveindependent clock inputs. This device also has an asynchronous resetfor the shift register.The HC595 directly interfaces with the SPI serial data port onCMOS MPUs and MCUs
Optocoupler High Level Relay Module Board 5V 4-CH for PIC ARM DSP AVR | Compatible with Arduno NodeMCU Raspberry Pi | Pack of 1 | Blue (Excellent Quality)
₹139.00+ GSTAdd to cart
- Size : 75mm (length) x 55mm (W) x 19.3mm (height);
- Weight : 80g;
- PCB Color : Blue;
- board four weeks with four screw holes, hole diameter 3.1mm, easy to install and fixed;
- Relay selection of quality loose music relays, SPDT. A common terminal, a normally open, one normally closed terminal;
- optocoupler isolation, good anti-jamming;
- Low pull, high release. Energisation status indicator light, release status LED is off;
- VCC for the system power, JD_VCC for the relay power. Default hair 12V relay, plug the jumper cap to;
- Relay Maximum output : DC 30V/10A, AC 250V/10A
- Wiring : VCC : positive power supply system GND : System power supply negative IN1 ? IN4 : relay control ports
- Rated 4.00 out of 5
100 MM x 2.5 MM, Nylon Zip Wire Organizer/Self Locking
₹10.00+ GSTAdd to cart
This is a?100 x 2.5 mm Nylon cable tie?also known as hose tie or Zip tie. The?cable tie?is perfect for holding items together specially electric cables or wires.? The flexible design of the?cable tie?makes it easier to slip the ties under and around wire harness. Thanks to the teeth on one of the side of the belt makes it easier for self locking and securing the wires.
- Rated 5.00 out of 5
8 Channel 5V Relay Board Expansion Module Optocoupler compatible UNO Raspberry
₹312.00+ GSTAdd to cart
- This relay module is 5 Volts active low.
- It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
- It is also able to control various appliances and other equipments with large current.
- Relay output maximum contact is AC250V 10A and DC30V 10A.
- Standard interface can be directly connected with microcontrollers.
- Red working status indicator lights are conducive to the safe use.
- Widely used for all MCU control, industrial sector, PLC control, smart home control.
- Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.
- VCC, GND : Input power.
- JD – VCC : Relay power input port,relay can power alone.
- Working voltage : 5V
- Module weight : about 112g
- package weight : about 150g
- module size : about 1.7cm X 5.5cm X 13.7cm(height * width * long)
