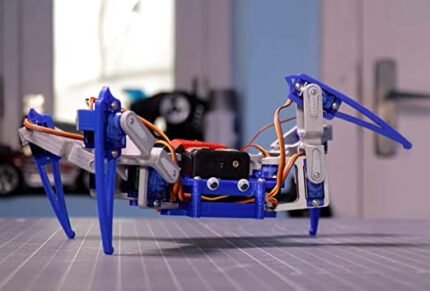

Spider Robot 3D Printed Plastic Parts (without servos and controller) - 022
Original price was: ₹550.00.₹430.50Current price is: ₹430.50. + GST

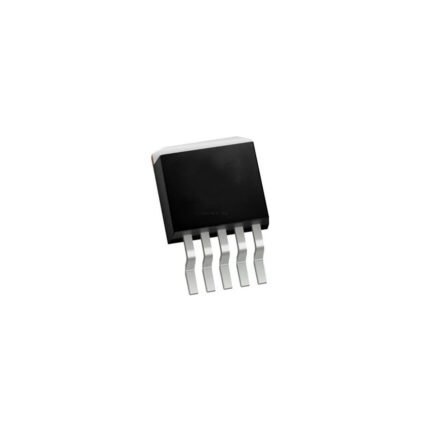

MIC29302 - (SMD TO-263 Package) - LDO Voltage Regulator
Original price was: ₹100.00.₹87.00Current price is: ₹87.00. + GST
20N60C3 – HAP523 MOSFET
Original price was: ₹120.00.₹84.50Current price is: ₹84.50. + GST
Features:-
- New revolutionary high voltage technology
- Ultra low gate charge
- Periodic avalanche rated
- Extreme dv/dt rated
- High peak current capability
- Improved transconductance
1 in stock
Description
20N60 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Reviews (7)
7 reviews for 20N60C3 – HAP523 MOSFET
You must be logged in to post a review.
Shipping and Delivery
We deliver all across India.
✅ Orders leave warehouse in 1–2 days.
✅ Delivery within 5–10 days after dispatch.
