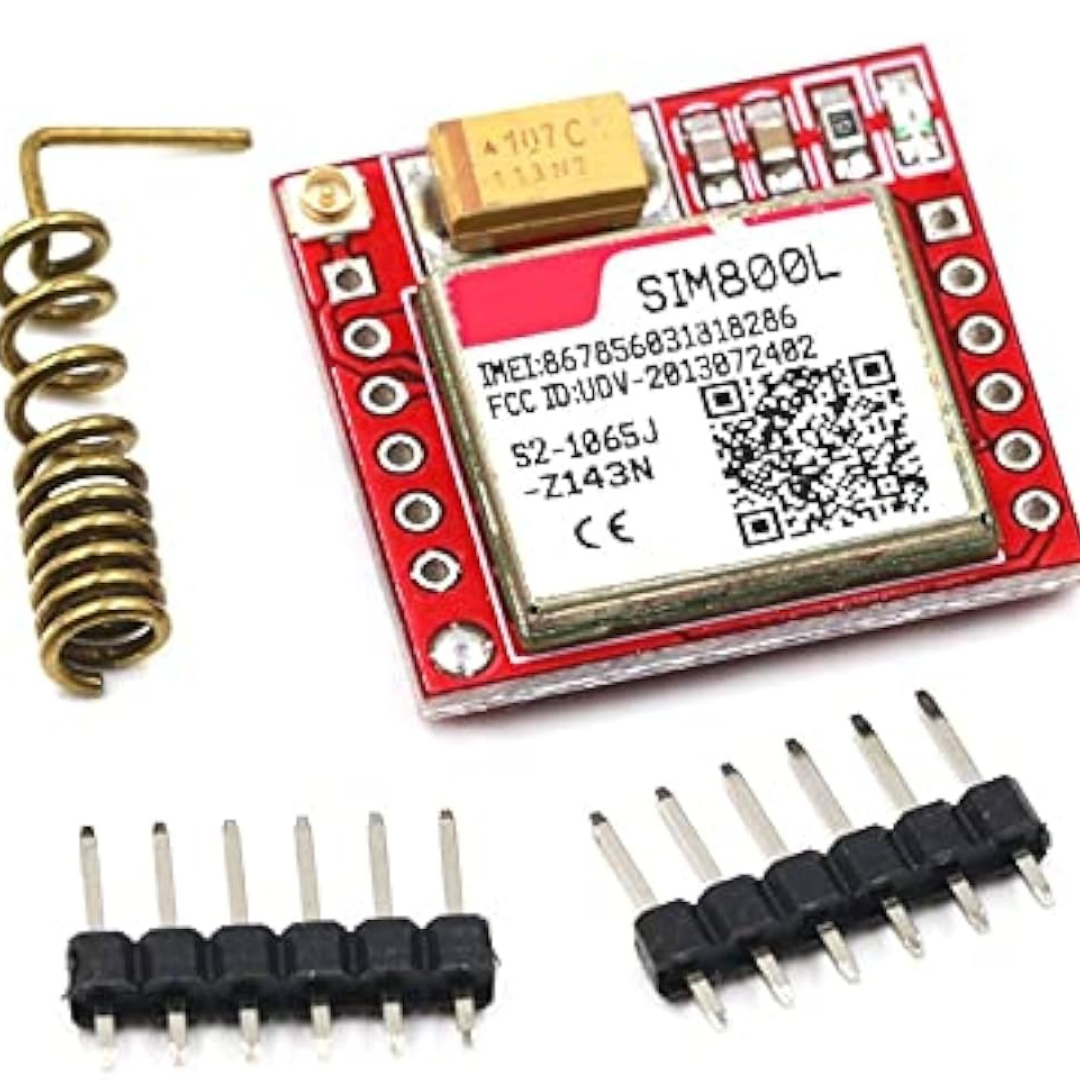

SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-Band TTL
Original price was: ₹400.00.₹236.16Current price is: ₹236.16. + GST
Features
- Quad-band 850/900/1800/1900MHz connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested).
- Make and receive voice calls using a headset or an external 8 speaker and electret microphone.
- PWM/Buzzer vibration motor control
- AT command interface with auto baud detection
- Send and receive SMS messages.
- Send and receive GPRS data (TCP/IP, HTTP, etc.).
- Scan and receive FM radio broadcasts.
- Lead out buzzer and vibration motor control port.
- AT command interface with auto baud detection.
- Onboard IPEX socket that can be connected to external antenna.
- Breakouts for external 8W speaker and electret mic if you dont want to use a headphone
- Level shifting circuitry so you can run it with 2.8V to 5V logic.
- Vibrational motor (buzzer) driver so you can have noiseless notifications
- uFL or SMA connections for external antenna
- Indicator LEDs for power and network connectivity
- Standard SIM slides into the back
Perfect for use in various electronics projects in India, SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) ensures reliability and performance. Ideal for various electronics projects, SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) offers quality and performance.
8 in stock
- Sim800L Module is low cost, low form factor GSM module based on Simcoms SIM800L chipset. Sim800L module supports quad-band GSM and GPRS network.
- This breakout board is perfect for application where size and cost is a constraint. Sim800L GSM module also supports quad band which means that it can work anywhere in the world. This low cost module is perfect for launching your next IoT project. Using this module you can almost make your own cellphone.
- Using this module you can:-
- Send Text Messages (SMS)
- Make or receive Phone calls
- Connect to Internet via GPRS
- TCP/IP
- The main drawback of this module is works on 3.7 to 4.2 volts so you cannot power it directly through Arduino or Raspberry Pi. Moreover the sim800L GSM and GPRS module requires upto 2 ampere current so accordingly design your power supply. You can use a 3.7 volt lipo battery to directly power the GSM module.
Key Applications: Used widely in electronic circuits, automation, robotics, and educational projects. Optimized for reliable performance in India-specific environments and conditions.
Keywords: SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V), electronic components India, SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) buy online, electronic supplies India, SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) price.
Applications: Suitable for electronics projects, automation, and educational purposes. Widely used in Indian and international markets.
Keywords: SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V), buy SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) online, electronics components, SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) features, SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V) applications, high quality SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port (3.7-4.2V)
1 review for SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-Band TTL
You must be logged in to post a review.
