When working with high-current loads in electronics, one common issue you might face is reverse polarity damage. This happens when the power supply is connected backward, which can destroy sensitive components. But don’t worry—there’s an easy solution to prevent this in your circuits: reverse polarity protection!

The Problem :

Imagine you’re powering a motor or LED array in a project. If you accidentally swap the positive and negative wires, your components could fry instantly, causing costly damage. The solution is simple: use a diode to block the reverse current and protect your circuit.

Practical Example :

Say you’re building a simple DC motor control circuit. You connect the power, but the polarity gets reversed. Without protection, the motor’s circuit is shorted, and it won’t work. By adding a diode in series with the power line, the diode will only allow current to flow when the polarity is correct, preventing reverse damage.

Sample Calculation :

Let’s say your motor requires 12V, and you use a diode with a 0.7V forward voltage drop.

To ensure the motor receives the correct voltage, your power supply should ideally be 12.7V.

Solution and Product Recommendation :

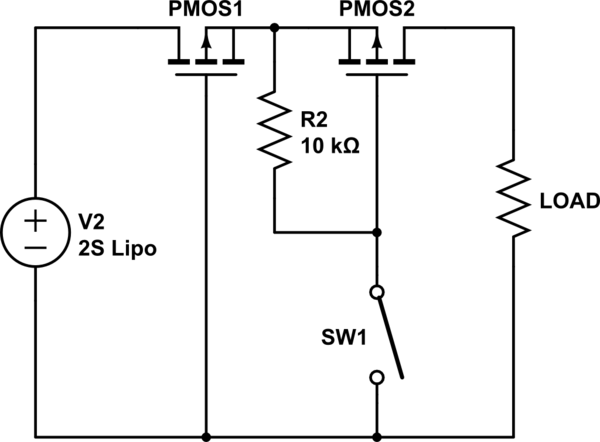

For effective reverse protection, use MOSFETs or diodes to safeguard your circuits. If you’re building a project with high-current loads, consider checking out high-quality Made in India components such as diodes and MOSFETs at SmartXProKits.
