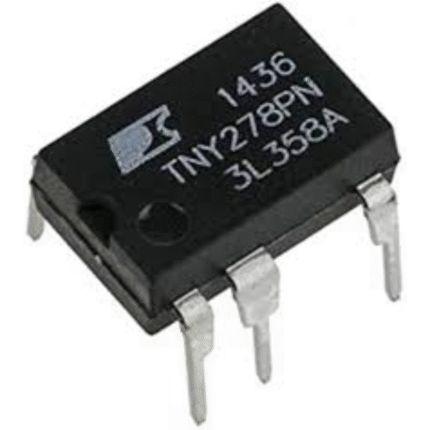

TNY278PN IC
KA1837
TEA2025 TEA2025 – Stereo audio amplifier IC
CD4047- Low Power Monostable/Astable Multivibrator IC DIP-14 PIN IC
L78L12ABUTR STM32 Linear Voltage Regulator, Fixed 12V Output, 100mA, SOT-89-3 Package – 19V Input for Electronics Projects

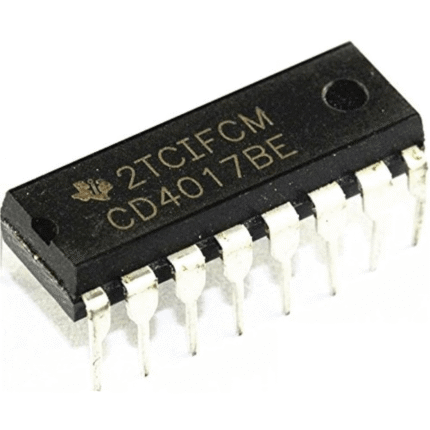

CD4017 Dip16 PIN IC
2N60 MOSFET
LNK305PN IC – Power Integrations – AC-DC Off Line Switcher IC
Specification:-
| Symbol | Parameter | Min | Type | Max | Units |
| VBP | BYPASS Pin Voltage | 5.55 | 5.8 | 6.10 | V |
| VBPH | BYPASS Pin Voltage Hysteresis | 0.8 | 0.95 | 1.2 | V |
| tON(MIN) | Minimum On Time | 280 | 360 | 475 | ns |
| tLEB | Leading Edge Blanking Time | 170 | 215 | ns | |
| TSD | Thermal Shutdown Temperature | 135 | 142 | 150 | ?C |
| TSHD | Thermal Shutdown Hysteresis | 75 | ?C |

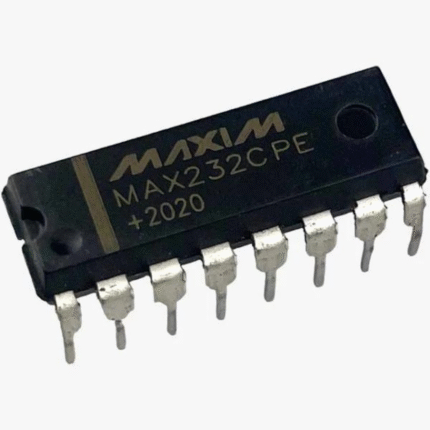

MAX232 – RS232 to TTL Converter 3V, 5V Compatible IC
MAX232 is a communication IC. It is used to convert TTL Signals to RS232 Signal and vice versa.?MAX232?provides RS-232 voltage level outputs (approx. ? 7.5 V) from a single + 5 V supply via on-chip charge pumps and external capacitors. This makes it useful for implementing RS-232 in devices that otherwise do not need any voltages outside the 0 V to + 5 V range, as power supply design does not need to be made more complicated just for driving the RS-232 in this case.
CNY17-2 Phototransistor Optocoupler IC DIP-6 Package
Specification:-
| Parameter | Value |
| Package / Case | DIP-6 |
| Length | 8.7 mm |
| Width | 6.5 mm |
| Height | 3.81 mm |
| Collector-Emitter Breakdown Voltage | 70 V |
| Current Transfer Ratio | 320% |
| Fall Time | 15 us |
| Isolation Voltage | 5000 Vrms |
| Maximum Collector Current | 100 mA |
| Maximum Collector Emitter Saturation Voltage | 0.4 V |
| Maximum Collector Emitter Voltage | 70 V |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Mounting Style | Through Hole |
| Number of Channels | 1 Channel |
| Output Type | NPN Phototransistor |
| Packaging | Tube |
| Pd - Power Dissipation | 150 mW |
| Product Type | Transistor Output Optocouplers |
| Rise Time | 4.6 us |
| Series | CNY |

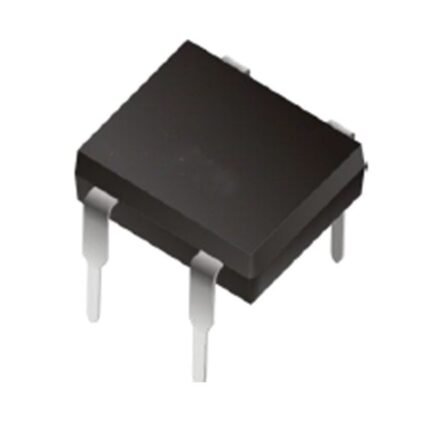

DB107 1 Amp Bridge Rectifier
Features:-
• Glass passivated die construction
• Low forward voltage drop
• High current capability
• High surge current capability
• Plastic material-UL flammability 94V-0
• This is a Pb − Free Device
• “-HF” suffix is for Halogen Free Device
• All SMC parts are traceable to the wafer lot
• Additional testing can be offered upon request
