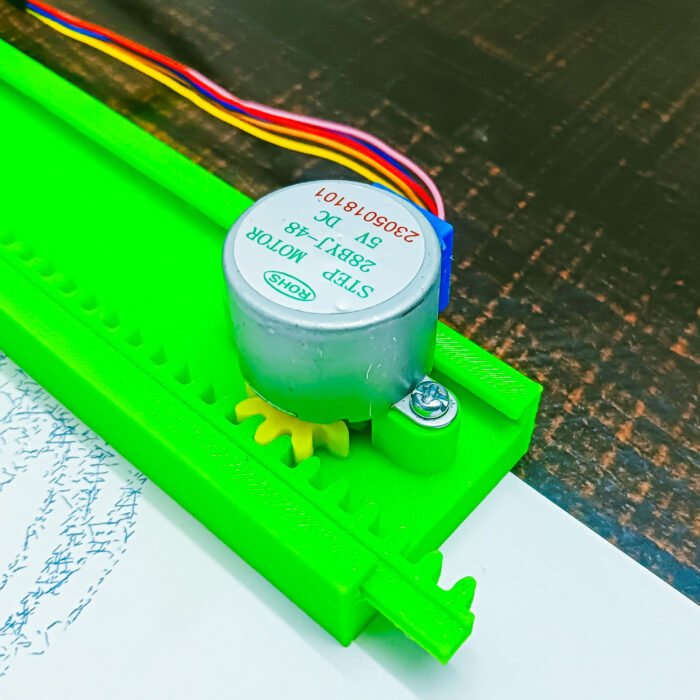

Mini CNC Plotter for DIY Projects – 3D Printed Compact Engraving Writing / Drawing Machine (Electronics & Motor Included) – 052
Original price was: ₹1,450.20.₹1,349.20Current price is: ₹1,349.20.
- Compact & Lightweight: Ideal for small workspaces and portable use.
- 3D Printed Frame: Durable and lightweight structure for stability.
- DIY Assembly: Easy to build and customize for various applications.
- Precise Plotting: Suitable for drawing, engraving, and PCB design.
- Compatible with Arduino: Works with GRBL-based controllers for automation.
- How To Make? :https://www.youtube.com/watch?v=yjwiEk_ZV5E
- https://www.instructables.com/Arduino-Mini-CNC-Plotter/
Note:
We have included the 3D-printed parts and essential electronic components in this kit. However, a few additional items such as hardware and the power supply will need to be purchased locally, depending on your specific project requirements.
411 in stock
Product Overview:
This Mini CNC Plotter is designed for DIY electronics enthusiasts, students, and makers. It allows precise plotting, engraving, and drawing on various surfaces, making it ideal for creative and educational projects. Compact and easy to assemble, it’s perfect for learning CNC basics.
- Features:
- Compact & Lightweight: Ideal for small workspaces and portable use.
- 3D Printed Frame: Durable and lightweight structure for stability.
- DIY Assembly: Easy to build and customize for various applications.
- Precise Plotting: Suitable for drawing, engraving, and PCB design.
- Compatible with Arduino: Works with GRBL-based controllers for automation.
- Applications:
- DIY electronics and PCB prototyping.
- Educational robotics and automation projects.
- Custom engraving and artistic designs.

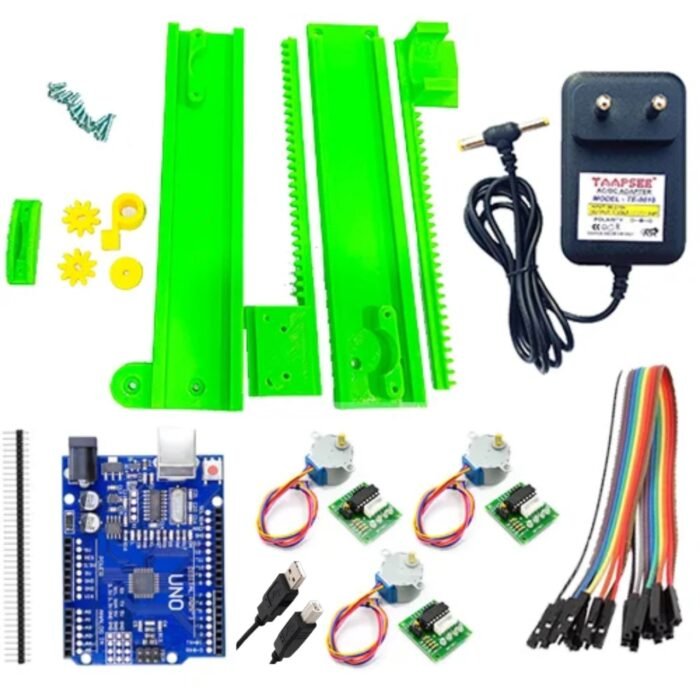

- Package Includes:

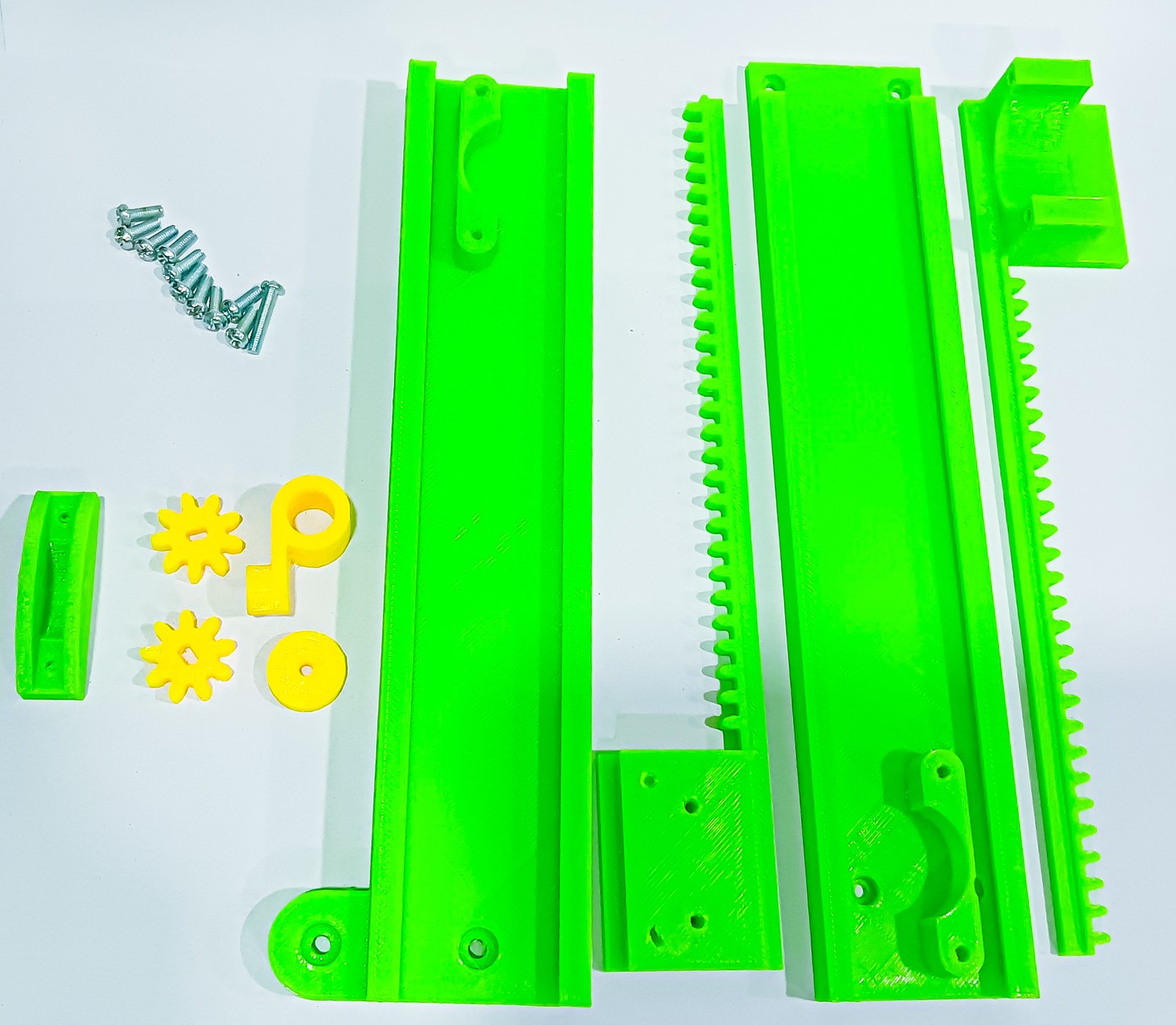

- 1 x 3D Printed Mini CNC Plotter Frame
- 1 x Arduino Uno SMD
- 3 x ULN2003 Stepper Motor
- 3 x ULN2003 Stepper Motor Driver Board
- 20 x Male to Female Jumper Wire
- 1 x 5V, 1A Adapter
- 1 x Uno Programming Cable
How To Make? : https://www.instructables.com/Arduino-Mini-CNC-Plotter/
You must be logged in to post a review.
We deliver all across India.
✅ Orders leave warehouse in 1–2 days.
✅ Delivery within 5–10 days after dispatch.
