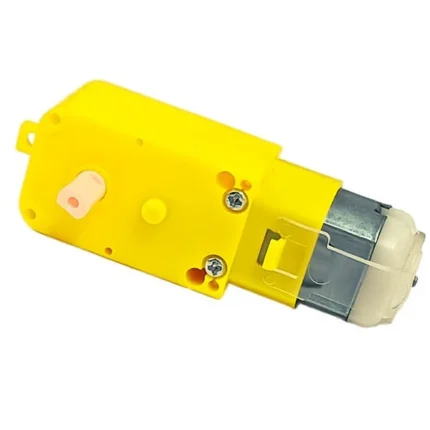

12V 200 RPM Geared DC Motor & Original Metal Gears (YELLOW)
Original price was: ₹150.00.₹130.00Current price is: ₹130.00. + GST
- These motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gearbox assembly.
- These standard size?DC Motors are very easy to use. Also, you don?t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with an onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.
- This 12V DC Motor ? 200RPM can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.
- Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels.
- These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications, available in the wide RPM range(Check the list below) and ideally suited for robotics and industrial applications.
54 in stock
specification
- Gear Material????????????????????????????????? ??????? plastic
- Rated Speed (RPM)??????????????????????????????????? 200
- Operating Voltage (VDC)???????????????????????? ?? 12
- Rated Torque(kg-cm)????????????????????????????????? 1.5
- Stall Torque(Kg-Cm)?????????????????????????????????? 5.4
- Load Current Max?????????????????????????????????????? 300
- No-Load Current (mA)??????????????????????????????? 60
- Gearbox Diameter (mm)???????????????????????????? 37
- Motor Diameter(mm)????????????????????????????????? 32
- Motor Length (mm)????????????????????????????????? ?? 75
- Shaft Diameter (mm)????????????????????????? ? ??????? 6
- Shaft Length (mm)?????????????????????????????????????? 22
- Weight (gm)????????????????????????????????????????????? ? ?? 80
- Shipment Weight??????????????????????????????????????? 0.09 kg
- Shipment Dimensions????????????????????????????? 10 ? 5 ? 5 cm
