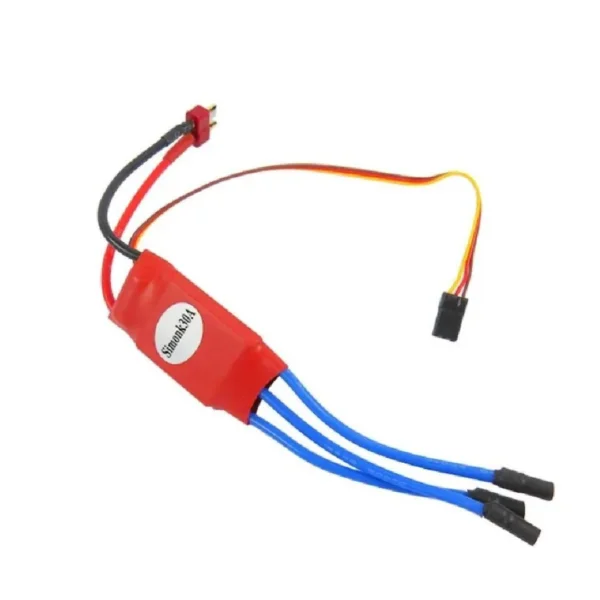

ESC 30 amp 30A Brushless Motor Speed Controller RC BEC ESC for Quadcopter Plane Helicopter, Drone Quadcopter Science Project
Original price was: ₹475.54.₹354.24Current price is: ₹354.24. + GST
This is fully programmable 30A BLDC ESC with 5V, 3A BEC. Can drive motors with
continuous 30Amp load current. It has sturdy construction with 2 separate PCBs for
Controller and ESC power MOSFETs. It can be powered with 2-4 lithium Polymer batteries
or 5-12 NiMH / NiCd batteries. It has separate voltage regulator for the microcontroller for
providing good anti-jamming capability. It is most suitable for UAVs, Aircrafts and
Helicopters.
4 in stock
- Output: 30A continuous; 40Amps for 10 seconds
- Input voltage: 2-4 cells Lithium Polymer / Lithium Ion battery or 5-12 cells NiMH /NiCd
- BEC: 5V, 3Amp for external receiver and servos
- Max Speed: 2 Pole: 210,000rpm; 6 Pole: 70,000rpm; 12 Pole: 35,000rpm
- Weight: 32gms
- Size: 55mm x 26mm x 13mm
