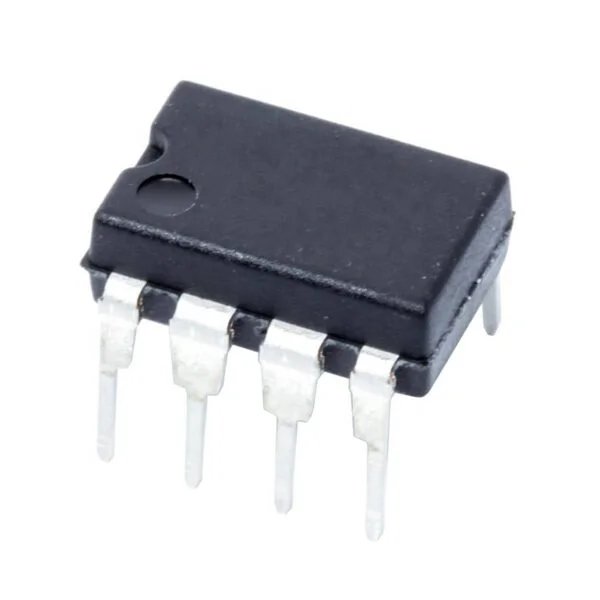

lm741 / UA741 General Purpose Op-Amp IC DIP-8 Package
Original price was: ₹10.00.₹7.54Current price is: ₹7.54. + GST
Specification:-
| Parameter | Test Conditions | Min | Type | Max | Unit | |
| Input offset voltage | RS 10 k | TA = 25C | 1 | 5 | m V | |
| TAMIN TA TAMAX | 6 | m V | ||||
| Input offset voltage | TA = 25C, VS = 20 V | 15 | m V | |||
| Input offset current | TA = 25C | 20 | 200 | n A | ||
| TAMIN TA TAMAX | 85 | 500 | ||||
| Input resistance | TA = 25C, VS = 20 V | 0.3 | 2 | M | ||
| Input voltage range | TAMIN TA TAMAX | 12 | 13 | V | ||
| Output short circuit current | TA = 25C | 25 | m A | |||
Perfect for use in various electronics projects in India, LM741 General Purpose Op-Amp IC DIP-8 Package ensures reliability and performance. Ideal for various electronics projects, LM741 General Purpose Op-Amp IC DIP-8 Package offers quality and performance.
109 in stock
The 741 series are general-purpose operational amplifier which features improved performance over industry standards like LM709. They are direct, Exceeded plug-in replacements for the 709C, LM201, MC1439, and 748 in most applications. The amplifiers offer many features which make theirs application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations. The LM741C is identical to the LM741 and LM741A except that the LM741C has their performance ensured over a 0C to +70C temperature range, instead of 55C to +125C.
Features:-
Overload Protection on the Input and Output amplifiers which feature improved performance over
No Latch-Up When the Common-Mode Range is industry standards like the LM709.
Key Applications: Used widely in electronic circuits, automation, robotics, and educational projects. Optimized for reliable performance in India-specific environments and conditions.
Keywords: LM741 General Purpose Op-Amp IC DIP-8 Package, electronic components India, LM741 General Purpose Op-Amp IC DIP-8 Package buy online, electronic supplies India, LM741 General Purpose Op-Amp IC DIP-8 Package price.
Applications: Suitable for electronics projects, automation, and educational purposes. Widely used in Indian and international markets.
Keywords: LM741 General Purpose Op-Amp IC DIP-8 Package, buy LM741 General Purpose Op-Amp IC DIP-8 Package online, electronics components, LM741 General Purpose Op-Amp IC DIP-8 Package features, LM741 General Purpose Op-Amp IC DIP-8 Package applications, high quality LM741 General Purpose Op-Amp IC DIP-8 Package
