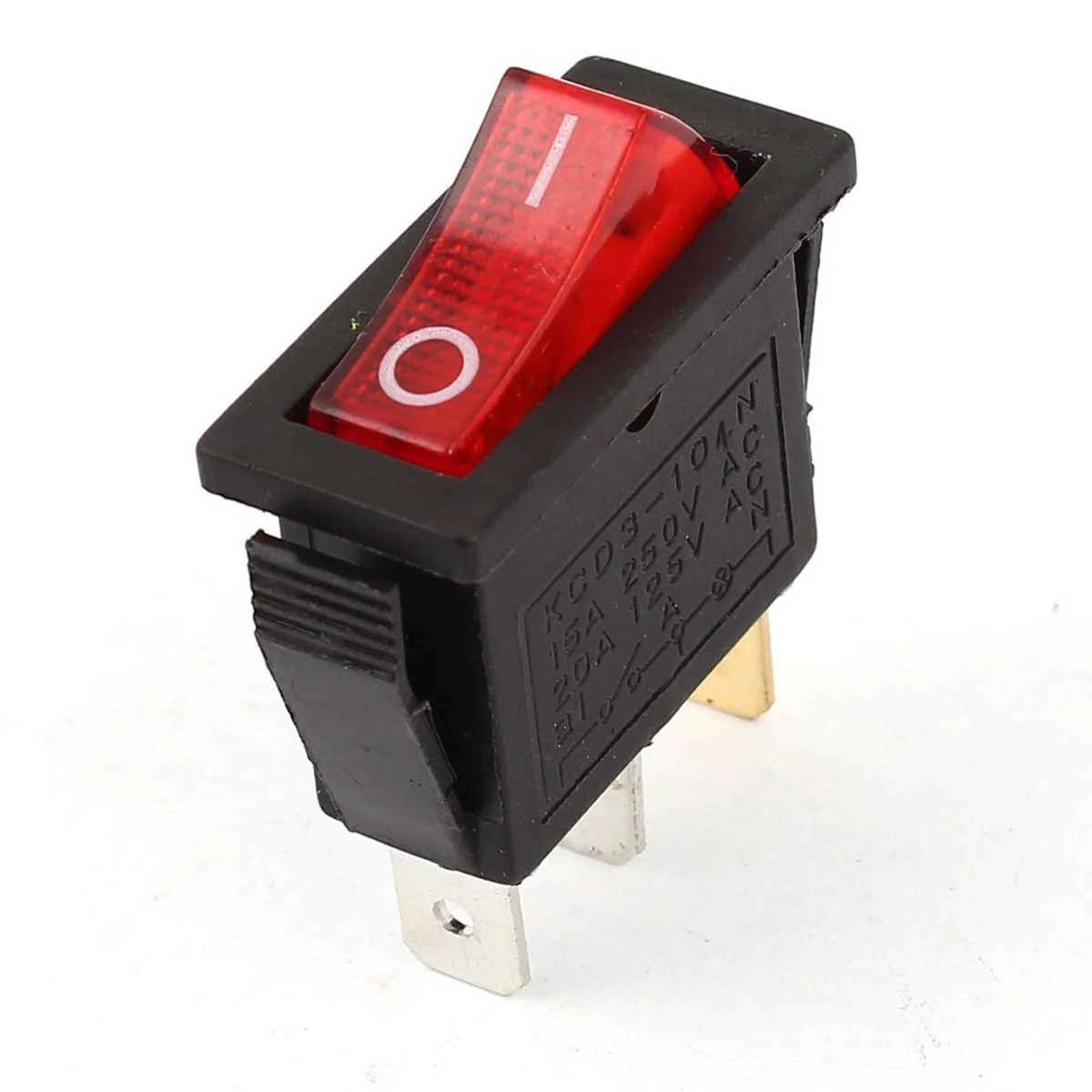

DPST ON-Off 3Pin Rocker Switch I 16A/20A AC 250V/125V
₹32.80 + GST
33 in stock
- Built in backlit red light (light lits when switch is in the on position)
- (DPST) Contact Type, 3Terminals.Marked on the rocker: I/O (on/off) for precise indications.
- Current: 16A – 250VAC, 20A – 125VAC
1 review for DPST ON-Off 3Pin Rocker Switch I 16A/20A AC 250V/125V
You must be logged in to post a review.
