4033 Decade counter IC
43 in stock

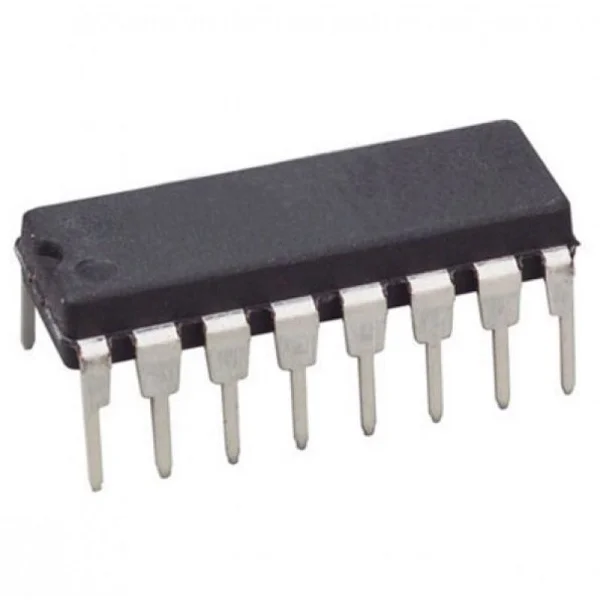

- The HCF4033B is a monolithic integrated circuit?fabricated in Metal Oxide Semiconductor?technology available in DIP and SOP packages.?The HCF4033B consists of a 5-stages Johnson?decade counter and an output decoder which?converts the Johnson code to a 7 segment?decoded output for driving one stage in a?numerical display. This device is particularly?advantageous in display applications where low?power dissipation and/or low package count are?important. This device has CLOCK, RESET,?CLOCK INHIBIT, RIPPLE BLANKING, LAMP?TEST input, CARRY OUT, RIPPLE BLANKING?and 7 DECODED outputs (a to g).A high RESET signal clears the decade counter to?its zero count. The counter is advanced one count?at the positive clock signal transition if the CLOCK?INHIBIT signal is low. Counter advancement via?the clock line is inhibited when the CLOCK?INHIBIT signal is high. Antilock gating is provided?on the JOHNSON counter, thus assuring proper?counting sequence. The CARRY-OUT (COUT)
- signal completes one cycle every ten CLOCK?INPUT cycles and is used to clock the succeeding?decade directly in a multi-decade counting chain.
