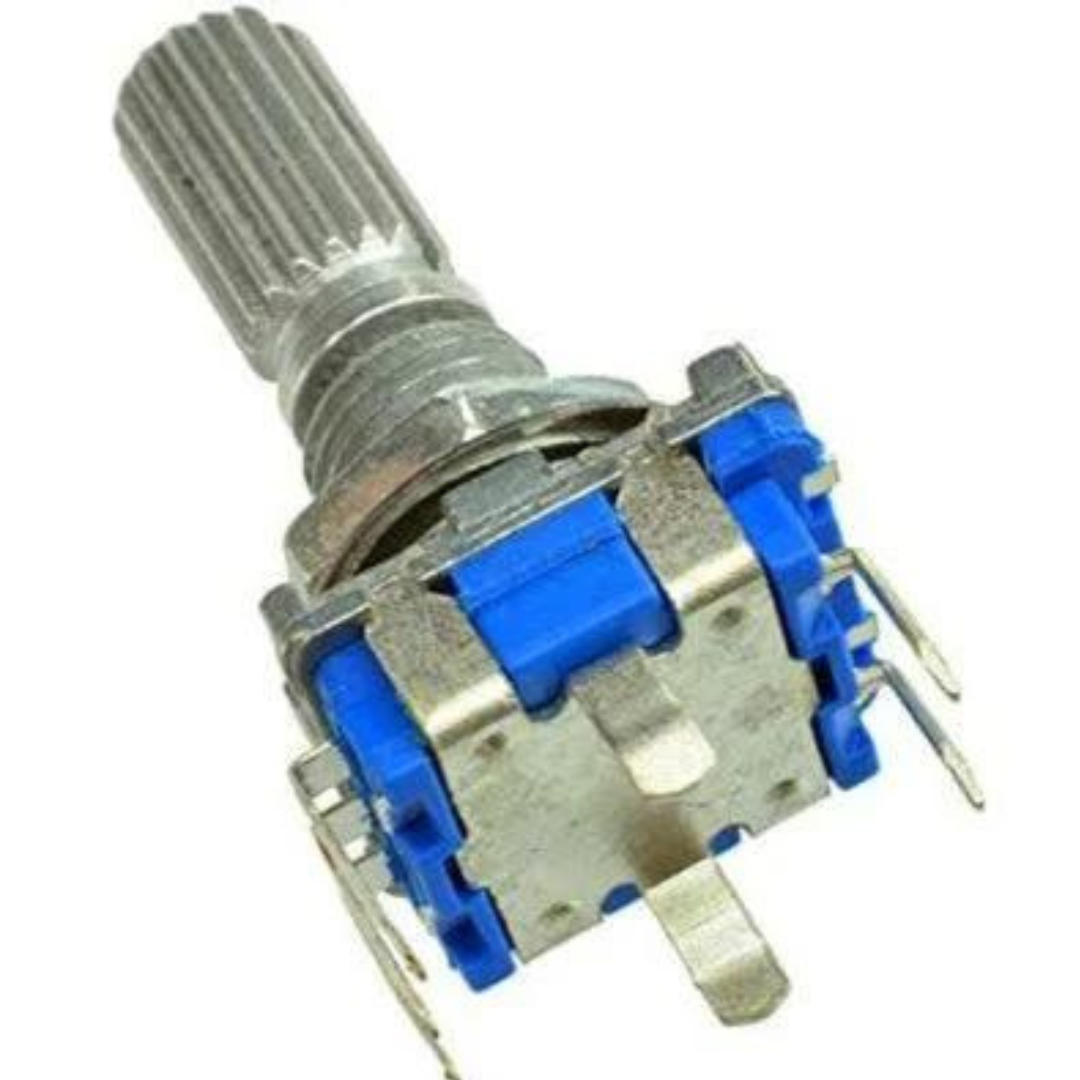

ROTARY ENCODER EC11 20MM KNURLED HANDLE WITH 20 POSITIONS
- Building innovative UI interface
- Good replacement for potentiometers which position feedback is not required
- Can be used for data entry as with modern in car CD players, for volume & on/off control or data selection via LED or LCD display; perfect for use with PIC or ATMEL microcontrollers.
This rotary encoder is high quality, with knurled handle(steps feel) and a nice continuous rotation. It is panel mountable for placement in a box, or you can plug it into a breadboard (just cut/bend the two mechanical side tabs.). This encoder also has a push-button built into it so you can press onto the knob to close a separate switch. One side has a 3 pin connector (ground and two coding pins) and the other side has two pins for a normally-open switch.
Rotary encoders are useful as rotation sensors or selectors and look similar to potentiometers. However they are not like potentiometers at all, so it’s important to realize the difference! These rotary encoders rotate all the way around continuously, and are divided up into 20 ‘segments’. Each segment has a click-y feeling to it, and each movement clockwise or counter-clockwise causes the two switches to open and close. There is no way to know what the current ‘position’ is – instead you would use a microcontroller to count how many ‘clicks’ left or right it has been turned. If you need to detect rotational ‘position’ a potentiometer would be a better choice.
