The Problem :

When working with robotics or electronics projects, one common issue that can damage your circuit is reverse voltage. This occurs when power is connected incorrectly—meaning the positive and negative connections are swapped. Even a brief connection like this can destroy sensitive components like microcontrollers or sensors, leading to costly repairs.

The Solution :

Reverse voltage happens when you mistakenly connect your power supply’s positive lead to the negative terminal and vice versa. This can short-circuit your circuit and burn out parts. To fix this, you can use reverse voltage protection. A simple way to prevent this issue is by using a diode, which only allows current to flow in the correct direction, blocking reverse current.

Example :

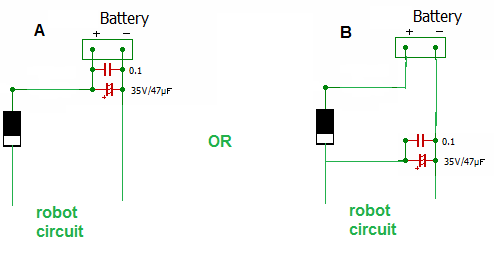

Imagine you’re powering a robot. If the power supply is connected in reverse, it could fry the control board, leaving your robot inoperable. By adding a diode in series with the power supply, you ensure that only the correct current flows into your robot, protecting it from accidental damage.

Simple Calculation :

Let’s say you use a 12V power supply for your robot.

A common diode like the 1N4007 can handle up to 1A of current and has a voltage drop of about 0.7V.

This means for a 12V supply, you’ll have a small loss of 0.7V, leaving your robot with 11.3V.

This is acceptable for most circuits, making the diode a simple and effective protection.
