The Problem :

When working with solar panels, one issue that hobbyists and engineers often face is reverse current flow. This happens when the power generated by the solar panels is sent back into the system incorrectly, potentially damaging the components. This can occur if the battery or power storage unit is fully charged and the panel continues to produce power, or if there’s a fault in the wiring. The good news is that reverse current protection can easily fix this.

The Solution :

To address this, you need a diode that allows current to flow in only one direction, preventing reverse current from causing harm. For instance, think of it like a check valve in plumbing – it lets water flow in only one direction and stops it from flowing backward.

Practical Example :

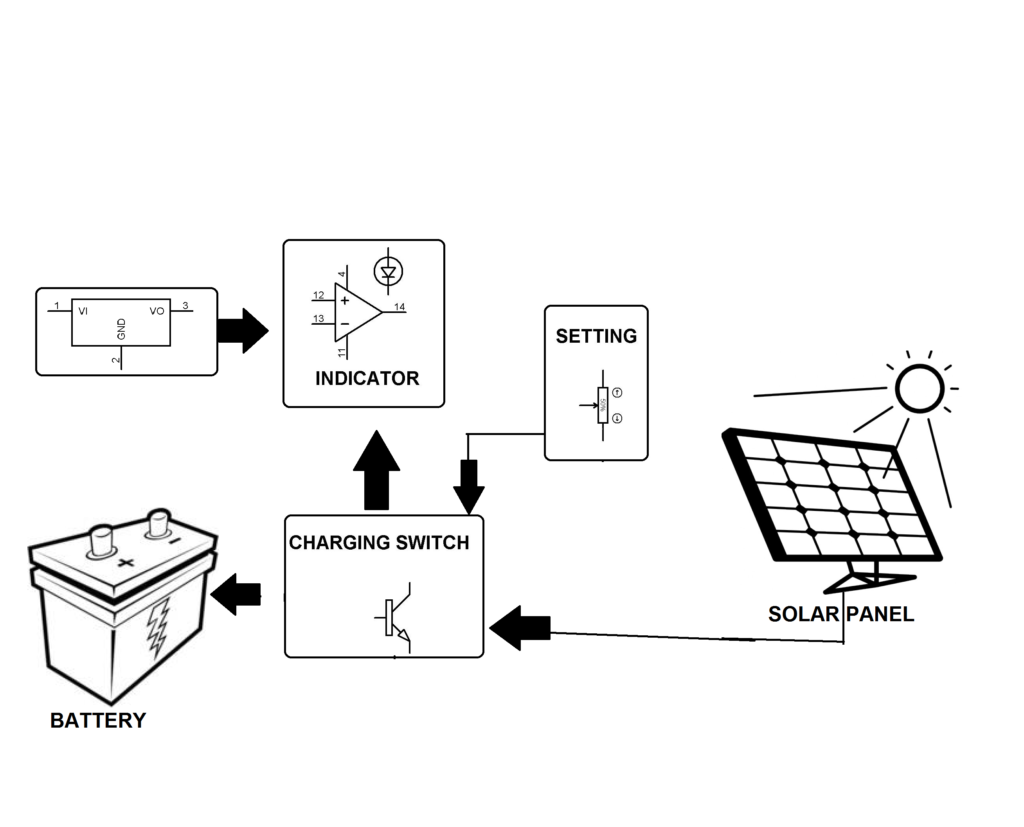

Imagine you’re powering a battery with a solar panel. During sunny hours, your panel generates more power than the battery can store. If there’s no reverse current protection, the battery could push energy back into the panel, potentially frying your system. A simple diode can solve this problem by ensuring the energy always flows in the correct direction, just like a one-way street for electricity.

Sample Calculation :

Let’s say your solar panel generates 5V and the battery is 12V.

The reverse current could potentially push 0.2A back.

If you’re using a diode with a forward voltage drop of 0.7V, this will reduce the reverse current’s damage significantly, keeping your components safe.

Product Suggestion [ Shop Now ] :

For reverse current protection, we recommend diodes or MOSFETs, which are excellent for handling this issue. You can find high-quality Made in India components, ideal for prototyping, at SmartXProKits.

Shop now at SmartXProKits.in to buy reliable, locally sourced parts.

Support our work and India’s innovation—buy from our Make in India site!
