Low Voltage Smart Clock Power Reference – Stay Ticking on Low Power
⚠️ The Problem :
Smart clocks that run on microcontrollers or RTC modules often fail or reset when power dips below a critical level. Many beginner hobbyists overlook voltage stability, which causes erratic behavior in time-sensitive circuits.
🛠️ The Solution :

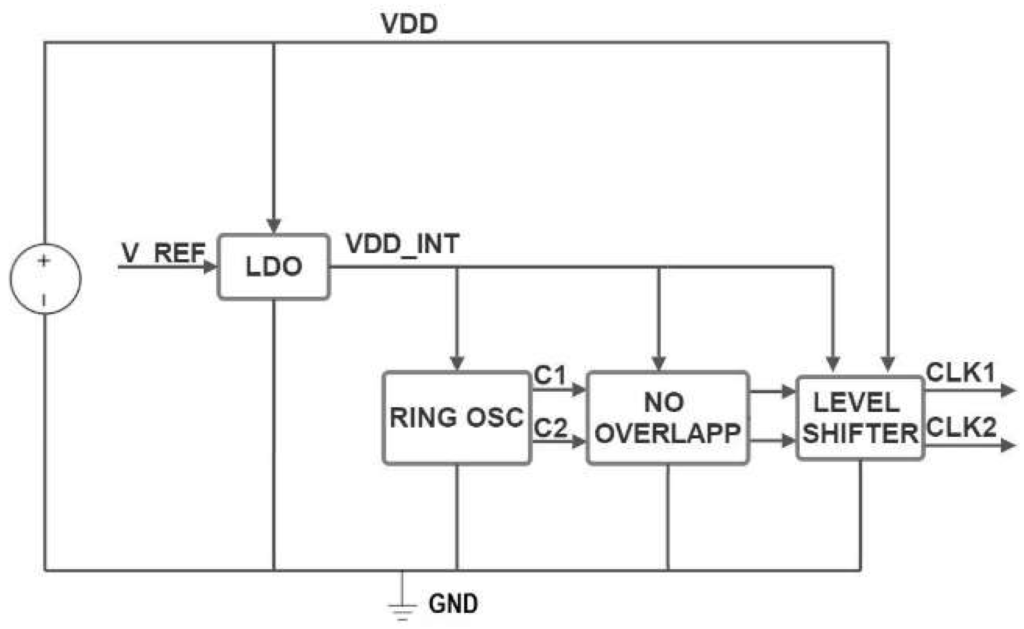

Use a low-dropout (LDO) voltage regulator or a reference voltage IC to keep your supply rock steady at 3.3V or 5V. These are perfect for powering real-time clocks (RTCs) like the DS3231, especially when running off battery or USB.
💡 Practical Example :
Let’s say you’re building a digital wall clock using a 3.7V Li-ion battery. As the battery discharges, voltage may drop below 3.3V, affecting your clock’s accuracy or functionality. A low dropout regulator ensures your RTC gets a consistent 3.3V, keeping time precise.
🧮 Sample Calculation :
If your RTC needs 200µA at 3.3V:
Power = V × I = 3.3V × 0.0002A = 0.66mW
This means even a small LDO like the AMS1117-3.3 can handle this easily.
