-50%

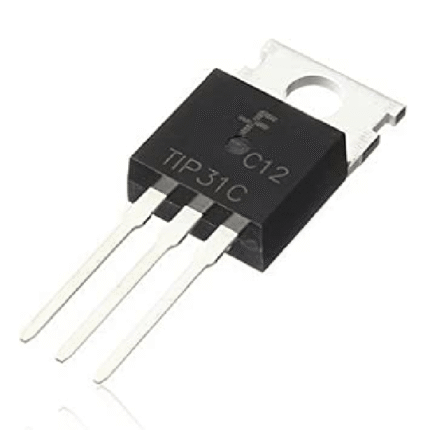

TIP31C NPN High Power 100V 3A Transistors
Original price was: ₹30.00.₹9.00Current price is: ₹9.00. + GST

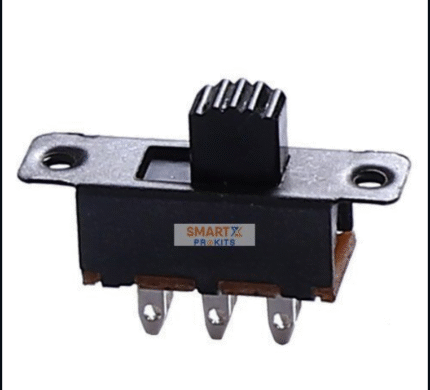

Mini Size SPDT Slide Switch On-Off 3-Pin 0.3A
Original price was: ₹20.00.₹16.35Current price is: ₹16.35. + GST
IRFZ44N MOSFET – 55V 49A N-Channel Power MOSFET TO-220 Package
Original price was: ₹30.00.₹15.00Current price is: ₹15.00. + GST
The IRFZ44N is known for its high drain current and fast switching speed. Adding to that it also has a low Rds value which will help in increasing the efficiency of switching circuits. The MOSFET will start turning on with a small gate voltage of 4V, but the drain current will be maximum only when a gate voltage of 10V is applied. If the mosfet has to be driven directly from a microcontroller like Arduino then try the logic level version IRLZ44N mosfet.
40 in stock
Description
- Small signal N-Channel MOSFET
- Continuous Drain Current (ID) is 49A at 25?C
- Pulsed Drain Current (ID-peak) is 160A
- Minimum Gate threshold voltage (VGS-th) is 2V
- Maximum Gate threshold voltage (VGS-th) is 4V
- Gate-Source Voltage is (VGS) is ?20V (max)
- Maximum Drain-Source Voltage (VDS) is 55V
- Rise time and fall time is about 60ns and 45ns respectively.
- It is commonly used with Arduino, due to its low threshold current.
- Available in To-220 package
Reviews (1)
Shipping and Delivery
Related products
1N4007 diode
1N4007 is an axial leaded general purpose rectifier in DO-41 package. This device features epoxy flame retardant, low forward voltage drop and high current capability and high reliability. Perfect for use in various electronics projects in India, 1N4007 -1000V ,1A |DIP Rectifier Diode Rohs Lead-free Compliant ensures reliability and performance. Ideal for various electronics projects, 1N4007 -1000V ,1A |DIP Rectifier Diode Rohs Lead-free Compliant offers quality and performance.
BC547 NPN General Purpose Transistor
BC547 is a general purpose BJT NPN transistor mostly used in electronics hobbyists and educational electronics projects. Besides these uses it can also be used in commercial circuits. It comes in TO-92 packaging and the maximum output current this transistor can handle is 100mA. The transistor is having very good DC current gain and low noise capabilities due to which it is ideal to use in signal amplification stages. The typical saturation voltage is only 90 millivolts which is also a good sign to use it as a switch.
FR107 Diode
High current capability High surge current capability High reliability Low reverse current Low forward voltage drop Fast switching for high efficiency Perfect for use in various electronics projects in India, FR107 - 700V , 1A Diode ensures reliability and performance. Ideal for various electronics projects, FR107 - 700V , 1A Diode offers quality and performance.
16 x 2 (1602) Character Blue LCD Display
- Operating Voltage is 4.7V to 5.3V
- Current consumption is 1mA without backlight
- Alphanumeric LCD display module, meaning can display alphabets and numbers
- Consists of two rows and each row can print 16 characters.
- Each character is build by a 58 pixel box
- Can work on both 8-bit and 4-bit mode
- It can also display any custom generated characters
- Available in Blue Backlight
Green 10mm LED
This is10mm Green LED. The size refers to the outside diameter of the LED, with 5mm being the most common LED model. 3mm LEDs are the smallest and used in tight-fitting applications. 8mm and 10mm models are used to output as much light as possible. Perfect for use in various electronics projects in India, Green 10mm LED ensures reliability and performance. Ideal for various electronics projects, Green 10mm LED offers quality and performance.
74HC595 8-bit Shift Register IC
The 74HC595 consists of an 8?bit shift register and an 8?bit D?typelatch with three?state parallel outputs. The shift register accepts serialdata and provides a serial output. The shift register also providesparallel data to the 8?bit latch. The shift register and latch haveindependent clock inputs. This device also has an asynchronous resetfor the shift register.The HC595 directly interfaces with the SPI serial data port onCMOS MPUs and MCUs
DHT11 Temperature and Humidity sensor
The DHT11 is a commonly used Temperature and humidity sensor. The sensor comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data. The sensor is also factory calibrated and hence easy to interface with other microcontrollers.
Priya (verified owner) –
Good quality.
