High-speed switching with MOSFETs can be tricky, especially when gate driver noise causes unwanted switching or unstable operation. For electronics hobbyists and prototypers in India, improving MOSFET gate driver noise immunity is key to building reliable circuits.

🔧 The Problem: Noise-Induced Misfiring

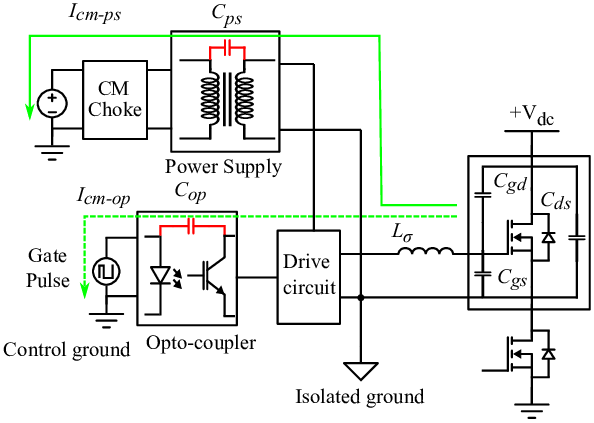

When switching at high frequencies, long gate traces or poor PCB layout can pick up electrical noise. This causes the MOSFET to turn on/off unintentionally, overheating components or corrupting signal timing.

✅ The Solution: Filtering and Proper Driving

Here’s how to fix it:

• Use gate resistors (10–100Ω) to dampen voltage spikes.

• Add a small capacitor (100pF–1nF) from gate to source for filtering.

• Use a dedicated MOSFET driver IC with good current capability to avoid false triggers.

•

🔍 Practical Example: DIY Inverter Project

Say you’re building a small inverter and notice your MOSFETs get hot or behave erratically. The issue? Long wires between the microcontroller and gate. By adding a 47Ω gate resistor and switching to a MOSFET driver IC, the inverter stabilizes instantly.

🧮 Sample Calculation: Gate Resistor Impact

Gate charge (Qg) = 40nC
Gate resistor (Rg) = 47Ω
Supply voltage = 10V
Switching time = (Qg × Rg) / V = (40×10⁻⁹ × 47) / 10 ≈ 188ns – fast and clean!
