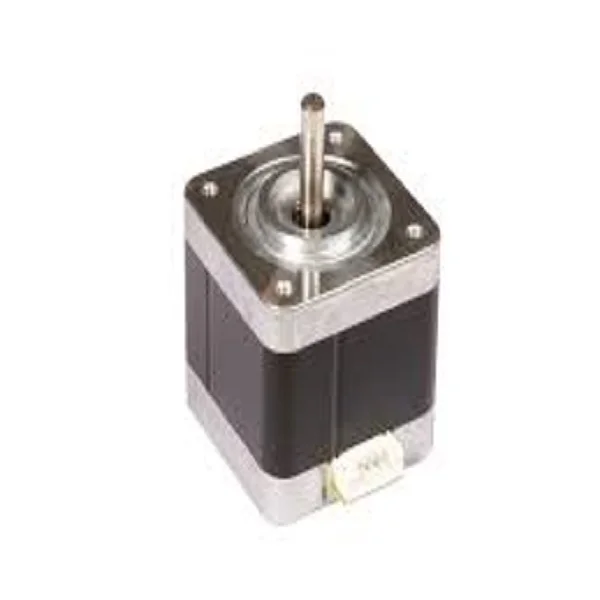

The Nema 17 2-phase 4-wire stepper motor (17HD34008-22B) has earned its reputation as a reliable and efficient choice in automation and 3D printing. But how does it work in real-world applications? Let’s look at some practical examples and explore how this motor enhances performance in different industries.

Case Study 1: 3D Printing Precision

One of the most popular uses for the Nema 17 motor is in 3D printers. This stepper motor offers precise control over the print head, ensuring detailed and accurate prints. For example, a small-scale 3D printing shop in India uses the Nema 17 motor in all of its FDM (Fused Deposition Modeling) printers. With a stepping angle of 1.8 degrees, this motor enables fine detail and high precision without sacrificing speed.

• Result: Increased print quality and reliability, with fewer mechanical failures.

Case Study 2: Robotics in Education

Educational institutions often use the Nema 17 motor in robotics kits for students. These kits allow students to learn about automation, robotics, and programming while using high-quality components that replicate real-world systems. The motor’s low power consumption and high reliability make it an ideal choice for classroom experiments, where it’s crucial to have durable and easy-to-use equipment.

• Result: Students experience hands-on learning with a motor that mimics industry-standard equipment.

Case Study 3: Automation in Manufacturing

In automation, the Nema 17 motor powers conveyor belts, pick-and-place arms, and other machinery in small- to medium-scale manufacturing settings. Its precision, along with its ability to operate at a range of frequencies, makes it a great fit for processes that require both consistency and flexibility.

• Result: Streamlined production processes, reduced downtime, and lower maintenance costs.

How to Use the Nema 17 Stepper Motor in Your Projects

Using the Nema 17 motor is easy and straightforward. Here’s how you can incorporate it into your projects:

1. Connect the Motor: Attach the motor’s four wires to a compatible driver.
2. Power Supply: Ensure the voltage rating of your power supply matches the motor’s requirement (3.45V).
3. Programming: Use a microcontroller (such as an Arduino) to control the stepper motor’s movements via a driver module.
4. Calibration: Adjust the parameters to fine-tune the motor’s performance for your specific application.

Why Choose Nema 17?

The Nema 17 2-phase 4-wire stepper motor is an excellent choice for those looking for precision, efficiency, and reliability. Its versatility makes it a valuable tool across various fields, from educational projects to advanced automation.

If you’re ready to take your projects to the next level with the Nema 17 motor, contact us to purchase or learn more. Let’s power your innovation together.
