DIY Mini Wind Turbine Project – Make an LED Glow
Have you ever wondered how wind can make electricity? In this simple project, we will build a mini wind turbine using a 3D printed rotor, a small DC motor, and an LED light. When the wind spins the turbine, the motor generates electricity that makes the LED glow.
This project is easy, safe, and fun – perfect for school children to learn about renewable energy.

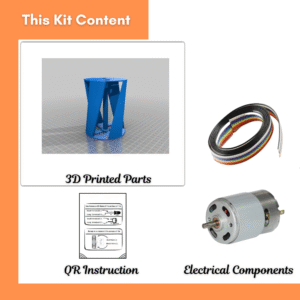

🛠️ Materials Needed
1 Vertical Wind Turbine (3D printed rotor)
1 Small DC Motor (comes with kit)
1 LED (any color)
1 Resistor (220Ω – 470Ω, to protect the LED)
Wires (comes with kit)
A fan (or natural wind)
⚡ Circuit Diagram
Turbine (spins motor)
│
[DC Motor]
+ –
│ │
│ │
(+) (–)
│ │
│ [LED] →|───┐
│ │
└──[Resistor]──┘
👉 The motor acts like a generator. When the turbine spins, it makes electricity. That electricity powers the LED.
📝 Step-by-Step Instructions
Fix the turbine on top of the DC motor shaft.
Connect the wires from the motor to the LED:
One motor wire → LED (long leg, positive side)
Other motor wire → Resistor → LED (short leg, negative side)
Check connections: make sure wires are tight.
Place your turbine in front of a fan or in the wind.
Watch carefully – the LED will start glowing as the wind spins the turbine!
🎓 What You Learned
Wind energy → mechanical energy → electrical energy → light energy
The motor works in reverse: normally motors use electricity to spin, but here, spinning makes electricity.
Polarity matters: If the LED doesn’t glow, swap the motor wires.
✅ Safety Tips
Keep fingers away from the spinning turbine.
Use low-voltage components only (safe for school projects).
Don’t use very strong wind that may damage the rotor.
Conclusion
This project is a fun way to learn how renewable energy works. By making a small wind turbine, you can see electricity being generated right in front of your eyes. The glowing LED is proof that wind can create power!
