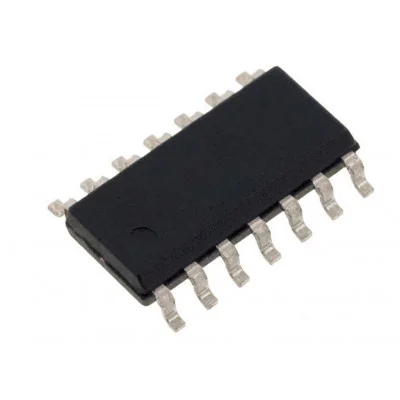

CD4093 IC – (SMD Package) – Quad 2-Input NAND Schmitt Trigger IC
Original price was: ₹10.00.₹6.50Current price is: ₹6.50. + GST
Applications:-
• Wave and pulse shapers
• High-noise-environment systems
• Monostable multi vibrators
• Astable multi vibrators
• NAND logic Ordering Code
20 in stock
- The CD4093 consists of four Schmitt-trigger circuits. Each circuit functions as a 2-input NAND gate with Schmitttrigger action on both inputs. The gate switches at different points for positive and negative-going signals. The difference between the positive (VT +) and the negative voltage (VT −) is defined as hysteresis voltage (VH). All outputs have equal source and sink currents and conform to standard B-series output drive.
