In this project, students will design and build a rocker-bogie style rover (like NASA’s Mars and Moon rovers) controlled via Bluetooth and Arduino.
The rover will be driven wirelessly from a smartphone app, and students will learn mechanics, electronics, and coding in one exciting project.




🛠️ Materials Needed

Arduino Uno (or Nano)

HC-05 Bluetooth Module

L298N Motor Driver (or DRV8833)

6 × DC Motors (for rocker-bogie drive system)

3D-printed or handmade rocker-bogie chassis (cardboard/plastic also works)

Wheels (3D-printed or toy wheels)

Battery Pack (7.4V Li-ion or AA pack)

Switch

Jumper wires and soldering tools

Smartphone with Bluetooth control app

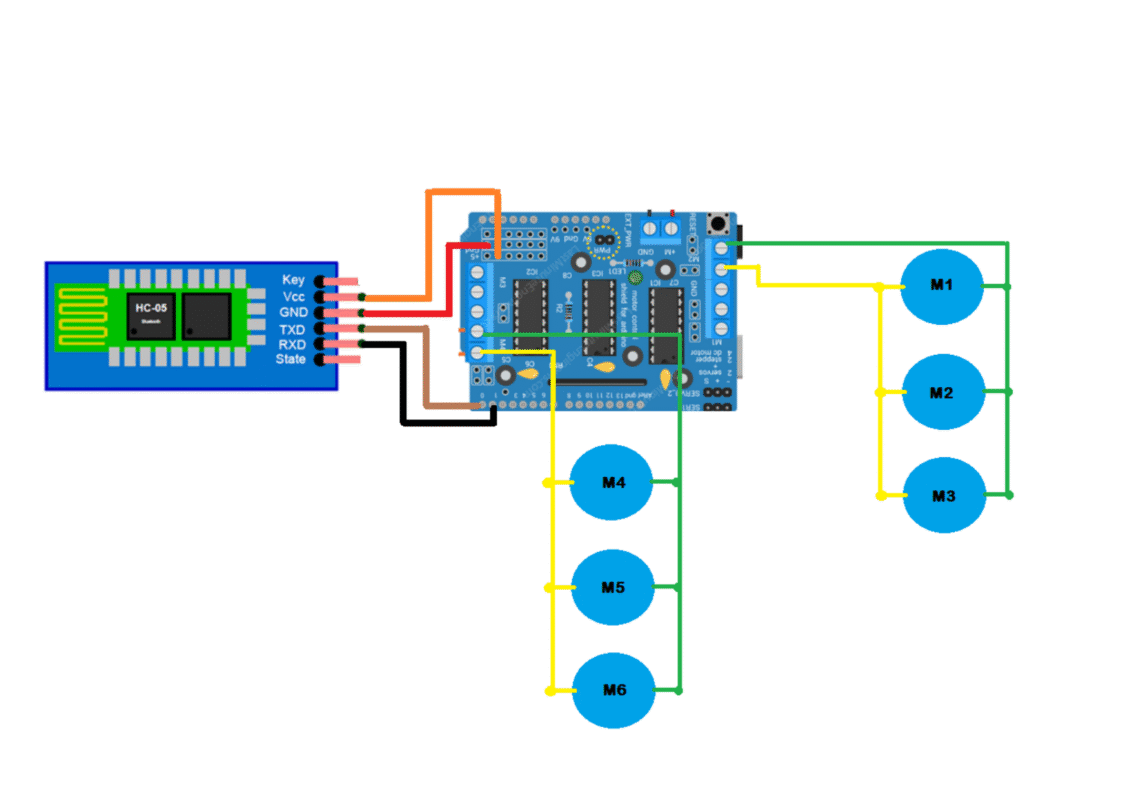

Circuit Diagram

Bluetooth Controlled Rocker Bogie Robot Kit

🏗️ Step 1: Build the Rocker-Bogie Chassis

The rocker-bogie system is a special suspension that allows rovers to climb rocks and uneven ground.

3D print or craft the arms, joints, and base chassis.

Mount three wheels per side:

Two on the rocker arm

One on the bogie arm

Ensure the arms rotate freely with bolts or screws.

Attach motors to each wheel mount.

👉 Tip: If 3D printing is not available, you can make the arms with wood or cardboard for a demo model.

🔌 Step 2: Wire the Electronics

Connect all motors to the L298N motor driver(s).

Connect HC-05 Bluetooth module to Arduino:

VCC → 5V

GND → GND

TX → D10

RX → D11

Connect motor driver inputs to Arduino pins: D2, D3, D4, D5.

Connect battery pack to motor driver VCC and GND.

💻 Step 3: Arduino Code (Bluetooth Controlled)

// ——– Bluetooth Controlled Rover ——–
// SmartXProKits Student Edition
// ——————————————–

// Define motor driver pins
const int motorA1 = 2;                          // Left Motor Forward
const int motorA2 = 3;                       // Left Motor Backward
const int motorB1 = 4;                       // Right Motor Forward
const int motorB2 = 5;                     // Right Motor Backward

char command;                              // Variable to store incoming Bluetooth command

void setup() {
// Initialize Serial Monitor and Bluetooth communication
Serial.begin(9600);

// Set motor control pins as outputs
pinMode(motorA1, OUTPUT);
pinMode(motorA2, OUTPUT);
pinMode(motorB1, OUTPUT);
pinMode(motorB2, OUTPUT);

// Initially stop the rover
stopRover();

Serial.println(“Bluetooth Rover Ready. Waiting for commands…”);
}

void loop() {
// Check if data is available from Bluetooth module
if (Serial.available() > 0) {
command = Serial.read();                              // Read the incoming command
Serial.print(“Received Command: “);
Serial.println(command);

// Stop rover before executing new command
stopRover();

// Execute command
if (command == ‘F’) {
forward();
}
else if (command == ‘B’) {
backward();
}
else if (command == ‘L’) {
leftTurn();
}
else if (command == ‘R’) {
rightTurn();
}
else if (command == ‘S’) {
stopRover();
}
}
}

// ——– Movement Functions ——–

// Move Forward
void forward() {
digitalWrite(motorA1, HIGH);
digitalWrite(motorA2, LOW);
digitalWrite(motorB1, HIGH);
digitalWrite(motorB2, LOW);
Serial.println(“Moving Forward”);
}

// Move Backward
void backward() {
digitalWrite(motorA1, LOW);
digitalWrite(motorA2, HIGH);
digitalWrite(motorB1, LOW);
digitalWrite(motorB2, HIGH);
Serial.println(“Moving Backward”);
}

// Turn Left
void leftTurn() {
digitalWrite(motorA1, LOW);
digitalWrite(motorA2, HIGH);
digitalWrite(motorB1, HIGH);
digitalWrite(motorB2, LOW);
Serial.println(“Turning Left”);
}

// Turn Right
void rightTurn() {
digitalWrite(motorA1, HIGH);
digitalWrite(motorA2, LOW);
digitalWrite(motorB1, LOW);
digitalWrite(motorB2, HIGH);
Serial.println(“Turning Right”);
}

// Stop Rover
void stopRover() {
digitalWrite(motorA1, LOW);
digitalWrite(motorA2, LOW);
digitalWrite(motorB1, LOW);
digitalWrite(motorB2, LOW);
Serial.println(“Rover Stopped”);
}

This sketch lets the rover respond to commands 'F', 'B', 'L', 'R' sent from your smartphone via Bluetooth.

📱 Step 4: Control via Smartphone

Pair phone with HC-05 Bluetooth module (default PIN: 1234 or 0000).

Open a Bluetooth controller app (like “Arduino Bluetooth Controller” from Play Store).

Assign buttons to send commands:

Forward → F

Backward → B

Left → L

Right → R


🤝 Teamwork Roles

Team A: Chassis & rocker-bogie assembly

Team B: Electronics wiring & soldering

Team C: Arduino coding & Bluetooth app setup

🚀 Extension Ideas

Add an ultrasonic sensor for obstacle detection.

Add a solar panel for charging outdoors.

Try building different wheel designs for better grip on sand or rocks.

Conclusion

Congratulations! You’ve built a rocker-bogie style Moon Rover that moves like a real NASA rover 🚀🌕.
This project gives students hands-on experience with robotics, electronics, and teamwork.
