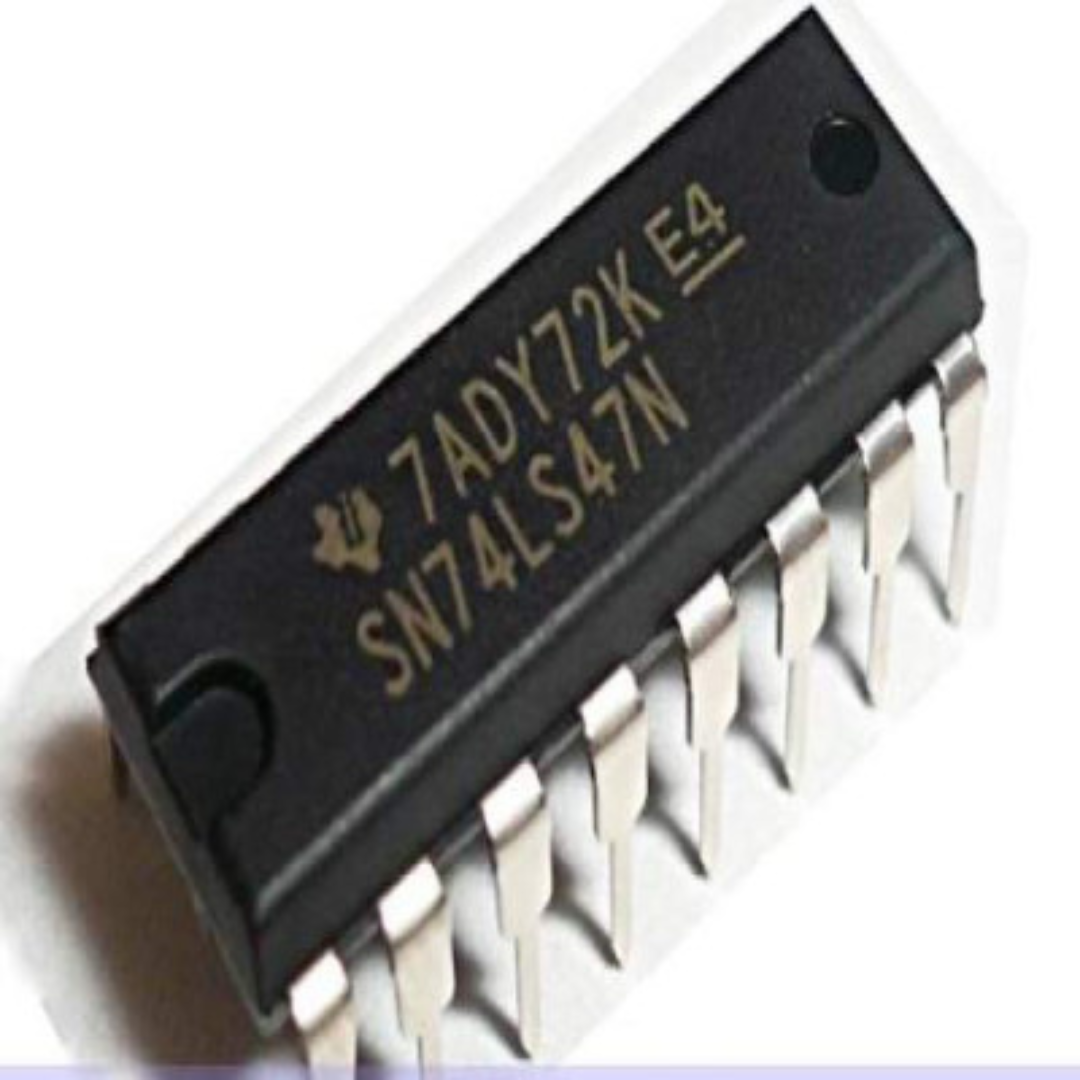

SN74LS47N BCD to 7-Segment Decoder/Driver IC (7447 IC) Package-DIP-16
Original price was: ₹50.00.₹28.00Current price is: ₹28.00. + GST
7447 or 74LS47 decodes BCD into 7 Segments, which means it accepts a binary coded decimal or BCD Values as input and decoded into a pattern that drives a 7-segment for displaying digits 0 to 9, so its name is BCD to 7 segment driver or decoder. Its input is 4 lines BCD data and generates complements as output. The generation of complement data of BCD is internally so no coding or programming is required to generate it.
80 in stock
- IC number: 7447
- Applicable for: BCD to 7 Segment converters and displays number from 0 to 9
- Maximum Voltage supply: 5.25V
- Minimum Voltage supply: 4.75V
- Package contains: checked and unused 1 piece of 7447 Ic
- Type: DIP
- Pins: 16
2 reviews for SN74LS47N BCD to 7-Segment Decoder/Driver IC (7447 IC) Package-DIP-16
You must be logged in to post a review.
