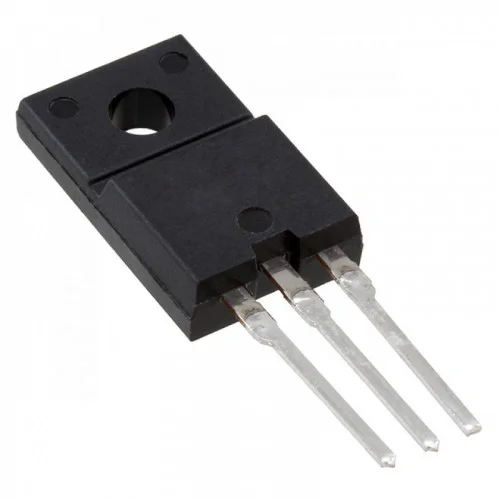

7N65 (7N65) N-mosfet D 650V 7A – TO-220F [Original]
Original price was: ₹38.00.₹36.40Current price is: ₹36.40. + GST
The UTC 7N65 is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in switching power supplies and adaptors
SPECIFICATIONS
Part #: 7N65L
Part Category: Transistors
Description:
Avalanche Energy Rating (Eas) 530.0 mJ
Case Connection ISOLATED
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 7.4 A
Drain Current-Max (ID) 7.4 A
Drain-source On Resistance-Max 1.2 ohm
DS Breakdown Voltage-Min 650.0 V
13 in stock
