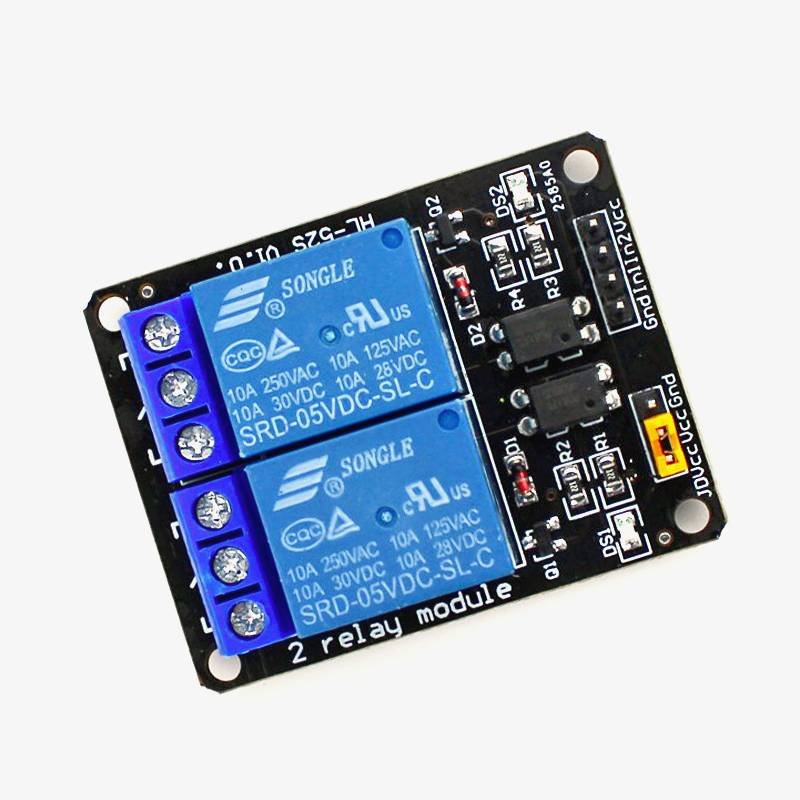

5V 2 Channel Relay Module
Original price was: ₹79.00.₹78.00Current price is: ₹78.00.
Features
- The module using Songle relay control.
- AC voltage 250V, AC current 10A, maximum DC voltage 30V DC current maximum 10A.
- Power indicator (green), Two ways of relay status indicator light (red)
Using 8550 transistor-driven, strong driving ability. - Has the fixed bolt hole and easy installation.
Perfect for use in various electronics projects in India, 5V 2 Channel Relay Module ensures reliability and performance. Ideal for various electronics projects, 5V 2 Channel Relay Module offers quality and performance.
9 in stock
- This is a 5V, 10A 2-Channel Relay interface board. It can be used to control various appliances, and other equipments with large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
- It has a 1×4 (2.54mm pitch) pin header for connecting power (5V and 0V), and for controlling the 2 relays.
The pins are marked on the PCB:-
- GND – Connect 0V to this pin.
- IN1 – Controls relay 1, active Low Relay will turn on when this input goes below about 2.0V
- IN2 – Controls relay 2, active Low Relay will turn on when this input goes below about 2.0V
- VCC – Connect 5V to this pin. Is used to power the optocouplers
Key Applications: Used widely in electronic circuits, automation, robotics, and educational projects. Optimized for reliable performance in India-specific environments and conditions.
Keywords: 5V 2 Channel Relay Module, electronic components India, 5V 2 Channel Relay Module buy online, electronic supplies India, 5V 2 Channel Relay Module price.
Applications: Suitable for electronics projects, automation, and educational purposes. Widely used in Indian and international markets.
Keywords: 5V 2 Channel Relay Module, buy 5V 2 Channel Relay Module online, electronics components, 5V 2 Channel Relay Module features, 5V 2 Channel Relay Module applications, high quality 5V 2 Channel Relay Module
We deliver all across India.
✅ Orders leave warehouse in 1–2 days.
✅ Delivery within 5–10 days after dispatch.
